인덕터 데이터시트
주요 제조업체의 인덕터 PDF 데이터시트를 찾아보고 다운로드하세요.
제품 속성
| 제품 | 인덕턴스 | 전류 | DCR | 크기 | 패키지 | 작업 |
|---|---|---|---|---|---|---|
 SRR1806-2R2M Bourns Inc. | 2.2 µH | - | - | 0.720" L x 0.551" W (18.30mm x 14.00mm) | Nonstandard | |
 SRR1806-471M Bourns Inc. | 470 µH | 640 mA | 1Ohm | 0.720" L x 0.551" W (18.30mm x 14.00mm) | Nonstandard | |
 SRR1806-681M Bourns Inc. | 680 µH | 540 mA | 1.47Ohm | 0.720" L x 0.551" W (18.30mm x 14.00mm) | Nonstandard | |
 SRR1806-7R0M Bourns Inc. | 7 µH | - | - | 0.720" L x 0.551" W (18.30mm x 14.00mm) | Nonstandard | |
 SRR1806-220M Bourns Inc. | 22 µH | 3 A | 53mOhm | 0.720" L x 0.551" W (18.30mm x 14.00mm) | Nonstandard | |

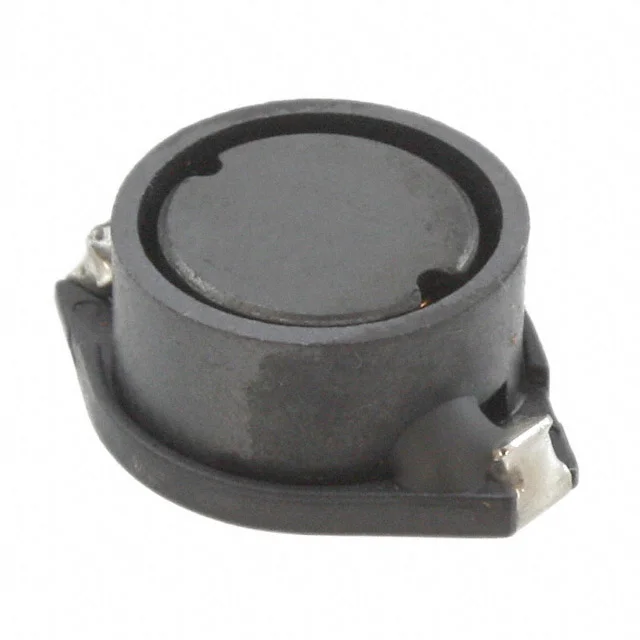

 SRR1806-680M Bourns Inc. | 68 µH | 1.6 A | 170mOhm | 0.720" L x 0.551" W (18.30mm x 14.00mm) | Nonstandard | |
 SRR1806-470M Bourns Inc. | 47 µH | 2 A | 110mOhm | 0.720" L x 0.551" W (18.30mm x 14.00mm) | Nonstandard | |
 SRR1806-151M Bourns Inc. | 150 µH | 1.05 A | 400mOhm | 0.720" L x 0.551" W (18.30mm x 14.00mm) | Nonstandard | |
 SRR1806-101M Bourns Inc. | 100 µH | 1.3 A | 270mOhm | 0.720" L x 0.551" W (18.30mm x 14.00mm) | Nonstandard | |
 SRR1806-102M Bourns Inc. | 1 mH | 450 mA | 2.16Ohm | 0.720" L x 0.551" W (18.30mm x 14.00mm) | Nonstandard | |
 SRR1806-100M Bourns Inc. | 10 µH | 4 A | 33mOhm | 0.720" L x 0.551" W (18.30mm x 14.00mm) | Nonstandard | |
 SRR1806-331M Bourns Inc. | 330 µH | 800 mA | 790mOhm | 0.720" L x 0.551" W (18.30mm x 14.00mm) | Nonstandard | |
 SRR1806-221M Bourns Inc. | 220 µH | 1 A | 510mOhm | 0.720" L x 0.551" W (18.30mm x 14.00mm) | Nonstandard | |
 SRR1806-150M Bourns Inc. | 15 µH | 3.6 A | 39mOhm | 0.720" L x 0.551" W (18.30mm x 14.00mm) | Nonstandard | |
 SRR1806-330M Bourns Inc. | 33 µH | 2.5 A | 83mOhm | 0.720" L x 0.551" W (18.30mm x 14.00mm) | Nonstandard |
