인덕터 데이터시트
주요 제조업체의 인덕터 PDF 데이터시트를 찾아보고 다운로드하세요.
제품 속성
1763개 데이터시트 검색됨 제조사: CODACA
| 제품 | 인덕턴스 | 전류 | DCR | 크기 | 패키지 | 작업 |
|---|---|---|---|---|---|---|
 CPRX2520L-1R2MC CODACA | 1.2 µH | 80 A | 0.3mOhm Max | 0.984 L x 0.819 W (25.00mm x 20.80mm) | Vertical, 2 PC Pin | |

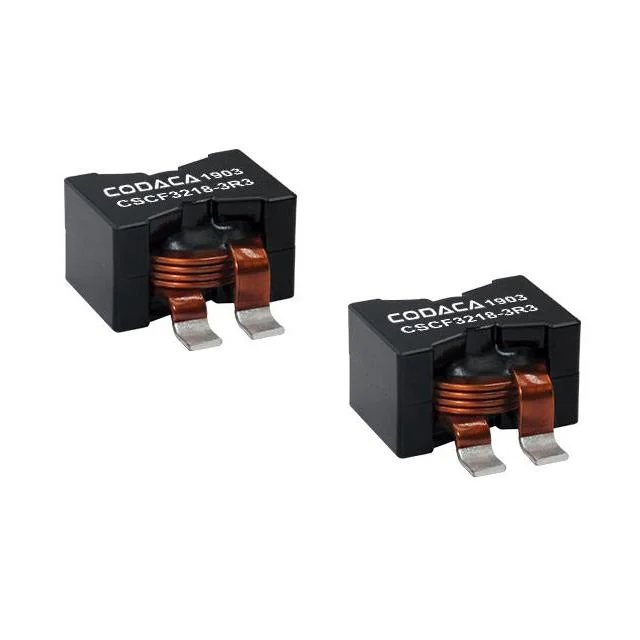

 CSCF3218-3R3MC CODACA | 3.3 µH | 55 A | 1.2mOhm Max | 1.260 L x 0.886 W (32.00mm x 22.50mm) | Vertical, 3 PC Pin | |
 CPQX2918L-180MC CODACA | 18 µH | 24 A | 4.55mOhm Max | 1.102 L x 0.984 W (28.00mm x 23.00mm) | Vertical, 3 PC Pin | |
 CPEX2618LP-4R3MC CODACA | 4.3 µH | 64 A | 900mOhm Max | 1.043 L x 0.709 W (26.50mm x 18.00mm) | Vertical, 2 PC Pin | |
 CPEX2618SP-1R1MC CODACA | 1.1 µH | 91 A | 350mOhm Max | 1.043 L x 0.709 W (26.50mm x 18.00mm) | Vertical, 2 PC Pin | |
 CPEX2618SP-5R6MC CODACA | 5.6 µH | 43 A | 1.74Ohm Max | 1.043 L x 0.709 W (26.50mm x 18.00mm) | Vertical, 2 PC Pin | |
 CPEX2618LP-120MC CODACA | 12 µH | 38 A | 2.34Ohm Max | 1.043 L x 0.709 W (26.50mm x 18.00mm) | Vertical, 2 PC Pin | |
 CPEX2618LP-6R2MC CODACA | 6.2 µH | 56 A | 1.22Ohm Max | 1.043 L x 0.709 W (26.50mm x 18.00mm) | Vertical, 2 PC Pin | |
 CPEX2618LP-R68MC CODACA | 0.68 µH | 107 A | 200mOhm Max | 1.043 L x 0.709 W (26.50mm x 18.00mm) | Vertical, 2 PC Pin | |
 CPEX2618SP-R47MC CODACA | 0.47 µH | 107 A | 200mOhm Max | 1.043 L x 0.709 W (26.50mm x 18.00mm) | Vertical, 2 PC Pin | |
 CPRX2520L-2R2MC CODACA | 2.2 µH | 75 A | 0.42mOhm Max | 0.984 L x 0.819 W (25.00mm x 20.80mm) | Vertical, 2 PC Pin | |

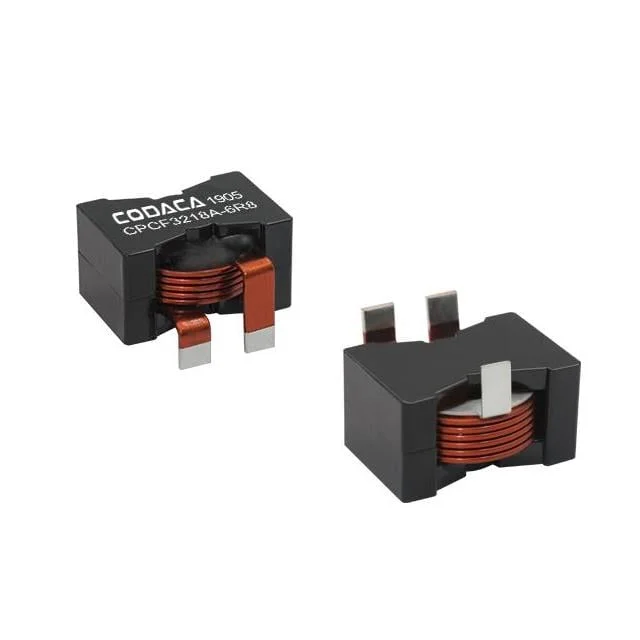

 CPCF3218A-6R8MC CODACA | 6.8 µH | 50 A | 1.6mOhm Max | 1.299 L x 0.748 W (33.00mm x 19.00mm) | Vertical, 3 PC Pin | |
 CPEX2622H-1R0MC CODACA | 1 µH | 79 A | 0.43mOhm Max | 1.043 L x 0.874 W (26.50mm x 22.20mm) | Vertical, 2 PC Pin | |
 CPEX2622L-150MC CODACA | 15 µH | 34 A | 2.32mOhm Max | 1.043 L x 0.874 W (26.50mm x 22.20mm) | Vertical, 2 PC Pin | |
 CPRA3231L-8R2MC CODACA | 8.2 µH | 60 A | 0.85mOhm Max | 1.291 L x 1.260 W (32.80mm x 32.00mm) | Vertical, 2 PC Pin | |
 CPRA3231L-220MC CODACA | 22 µH | 35 A | 2.15mOhm Max | 1.291 L x 1.260 W (32.80mm x 32.00mm) | Vertical, 2 PC Pin | |
 CSQA3218SP-6R8MC CODACA | 6.8 µH | 48 A | 1.7mOhm Max | 1.248 L x 1.345 W (32.00mm x 34.50mm) | Vertical, 3 PC Pin | |
 CPEX3222S-120MC CODACA | 12 µH | 38 A | 2.08mOhm Max | 1.268 L x 0.874 W (32.20mm x 22.20mm) | Vertical, 2 PC Pin | |
 CPEX2622LV-2R2MC CODACA | 2.2 µH | 79 A | 430mOhm Max | 1.043 L x 0.874 W (26.50mm x 22.20mm) | Vertical, 2 PC Pin | |
 CPEX2622LV-100MC CODACA | 10 µH | 41 A | 1.61Ohm Max | 1.043 L x 0.874 W (26.50mm x 22.20mm) | Vertical, 2 PC Pin | |
 CPCF3517A-2R2MC CODACA | 2.2 µH | 65 A | 400mOhm Max | 1.417 L x 1.378 W (36.00mm x 35.00mm) | Vertical, 2 PC Pin | |
 CPCFA2626-6R8M CODACA | 6.8 µH | 40 A | 1.48Ohm Max | 1.043 L x 1.043 W (26.50mm x 26.50mm) | Vertical, 2 PC Pin | |
 CPCFA2626-100M CODACA | 10 µH | 33 A | 2.2Ohm Max | 1.043 L x 1.043 W (26.50mm x 26.50mm) | Vertical, 2 PC Pin | |
 CPEX2622LV-120MC CODACA | 12 µH | 39 A | 1.81Ohm Max | 1.043 L x 0.874 W (26.50mm x 22.20mm) | Vertical, 2 PC Pin | |
 CPEX2622LV-220MC CODACA | 22 µH | 28 A | 3.48Ohm Max | 1.043 L x 0.874 W (26.50mm x 22.20mm) | Vertical, 2 PC Pin |
