Duyệt và tải PDF tài liệu kỹ thuật cuộn cảm từ các nhà sản xuất hàng đầu.
| Sản Phẩm | Độ tự cảm | Định Mức Dòng Điện | Điện Trở (DCR) | Kích Thước | Gói | Hành Động |
|---|---|---|---|---|---|---|
 BMMA000505301R5MV1 Pulse Electronics | 1.5 µH | 7.2 A | 20.7mOhm Max | 0.216" L x 0.204" W (5.49mm x 5.18mm) | - | |
 BMMA000505301R0MX2 Pulse Electronics | 1 µH | 7 A | 14mOhm Max | 0.209" L x 0.185" W (5.30mm x 4.70mm) | - | |
 BMMA000505301R0MX1 Pulse Electronics | 1 µH | 7 A | 14mOhm Max | 0.209" L x 0.185" W (5.30mm x 4.70mm) | - | |
 BMMA000505301R2MX1 Pulse Electronics | 1.2 µH | 6.5 A | 16mOhm Max | 0.209" L x 0.185" W (5.30mm x 4.70mm) | - | |
 BMMA000505301R2MX2 Pulse Electronics | 1.2 µH | 6.5 A | 16mOhm Max | 0.209" L x 0.185" W (5.30mm x 4.70mm) | - | |
 BMMA000505301R5MX2 Pulse Electronics | 1.5 µH | 6 A | 25mOhm Max | 0.209" L x 0.185" W (5.30mm x 4.70mm) | - | |
 BMMA000505301R5MX1 Pulse Electronics | 1.5 µH | 6 A | 25mOhm Max | 0.209" L x 0.185" W (5.30mm x 4.70mm) | - | |
 BMMA000505303R3MX1 Pulse Electronics | 3.3 µH | 5 A | 38mOhm Max | 0.209" L x 0.185" W (5.30mm x 4.70mm) | - | |
 BMMA000505303R3MX2 Pulse Electronics | 3.3 µH | 5 A | 38mOhm Max | 0.209" L x 0.185" W (5.30mm x 4.70mm) | - | |
 BMMA000505302R2MX1 Pulse Electronics | 2.2 µH | 5.5 A | 35mOhm Max | 0.209" L x 0.185" W (5.30mm x 4.70mm) | - | |
 BMMA00050530150MV1 Pulse Electronics | 15 µH | 1.9 A | 265mOhm Max | 0.216" L x 0.204" W (5.49mm x 5.18mm) | - | |
 BMMA000505302R2MX2 Pulse Electronics | 2.2 µH | 5.5 A | 35mOhm Max | 0.209" L x 0.185" W (5.30mm x 4.70mm) | - | |
 BMMA00050530R10MV1 Pulse Electronics | 100 nH | 23 A | 3.16mOhm Max | 0.216" L x 0.204" W (5.49mm x 5.18mm) | - | |
 BMMA000505305R6MV1 Pulse Electronics | 5.6 µH | 3 A | 108mOhm Max | 0.216" L x 0.204" W (5.49mm x 5.18mm) | - | |
 BMMA00050530R22MX2 Pulse Electronics | 220 nH | 21 A | 3.9mOhm Max | 0.209" L x 0.185" W (5.30mm x 4.70mm) | - | |
 BMMA00050530R47MV1 Pulse Electronics | 470 nH | 12.2 A | 7.04mOhm Max | 0.216" L x 0.204" W (5.49mm x 5.18mm) | - | |
 BMMA00050530R33MV1 Pulse Electronics | 330 nH | 13.7 A | 5.56mOhm Max | 0.216" L x 0.204" W (5.49mm x 5.18mm) | - | |
 BMMA00050530R82MV1 Pulse Electronics | 820 nH | 9.3 A | 11.9mOhm Max | 0.216" L x 0.204" W (5.49mm x 5.18mm) | - | |
 BMMA00050530R22MV1 Pulse Electronics | 220 nH | 15.5 A | 4.52mOhm Max | 0.216" L x 0.204" W (5.49mm x 5.18mm) | - | |
 BMMA00050530R68MX2 Pulse Electronics | 680 nH | 8.5 A | 12mOhm Max | 0.209" L x 0.185" W (5.30mm x 4.70mm) | - | |
 BMMA000505304R7MV1 Pulse Electronics | 4.7 µH | 3.5 A | 77.5mOhm Max | 0.216" L x 0.204" W (5.49mm x 5.18mm) | - | |
 BMMA00050530R68MV1 Pulse Electronics | 680 nH | 10.2 A | 8.96mOhm Max | 0.216" L x 0.204" W (5.49mm x 5.18mm) | - | |
 BMMA00050530R68MX1 Pulse Electronics | 680 nH | 8.5 A | 12mOhm Max | 0.209" L x 0.185" W (5.30mm x 4.70mm) | - | |
 BMMA00050530R35MX2 Pulse Electronics | 350 nH | 16.5 A | 5mOhm Max | 0.209" L x 0.185" W (5.30mm x 4.70mm) | - | |

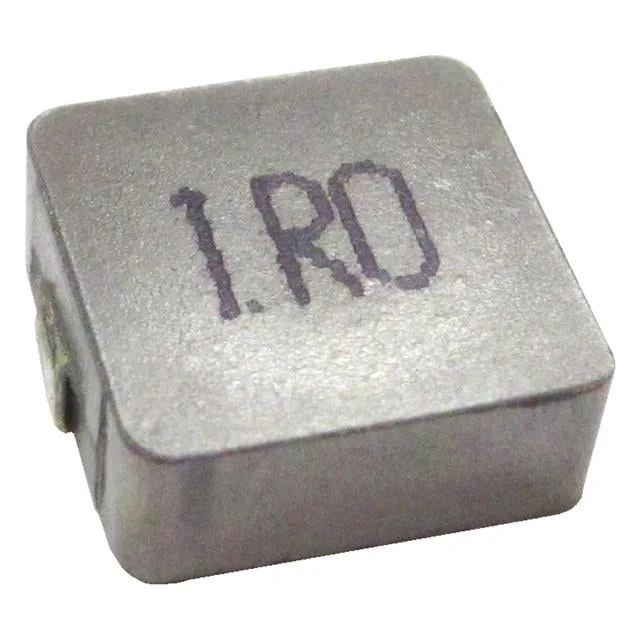

 BMMA000505201R0MV1 Pulse Electronics | 1 µH | 7 A | 20mOhm Max | 0.216" L x 0.204" W (5.49mm x 5.18mm) | - |
