Duyệt và tải PDF tài liệu kỹ thuật cuộn cảm từ các nhà sản xuất hàng đầu.
| Sản Phẩm | Độ tự cảm | Định Mức Dòng Điện | Điện Trở (DCR) | Kích Thước | Gói | Hành Động |
|---|---|---|---|---|---|---|
| 180 nH | 50 mA | 8.5Ohm Max | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | ||
| 2.2 nH | 400 mA | 250mOhm Max | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | ||
| 1.5 nH | 550 mA | 150mOhm Max | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | ||
| 0.9 nH | 600 mA | 100mOhm Max | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | ||
| 1 nH | 600 mA | 100mOhm Max | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | ||
| 1.3 nH | 550 mA | 150mOhm Max | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | ||
| 0.3 nH | 600 mA | 100mOhm Max | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | ||
| 11 nH | 400 mA | 400mOhm Max | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | ||
| 100 nH | 200 mA | 2Ohm Max | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | ||

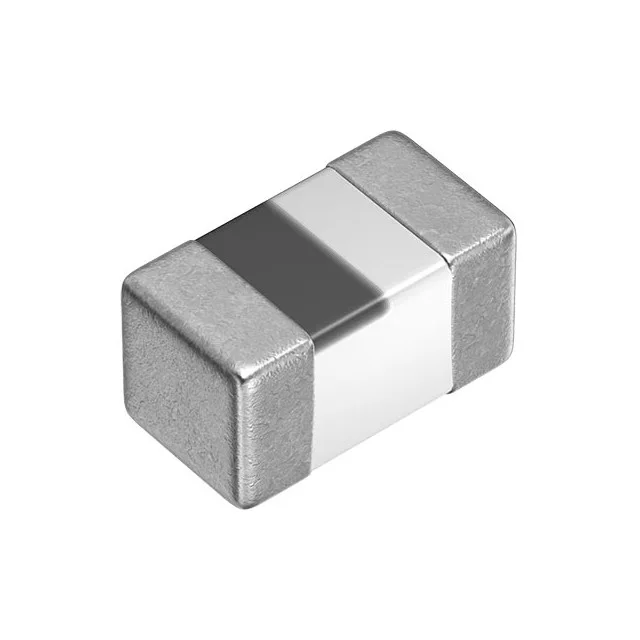

| 27 nH | 300 mA | 800mOhm Max | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | ||
| 220 nH | 100 mA | 4.2Ohm Max | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | ||
| 13 nH | 400 mA | 500mOhm Max | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | ||
| 43 nH | 250 mA | 1.1Ohm Max | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | ||
| 24 nH | 350 mA | 700mOhm Max | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | ||
| 0.4 nH | 1 A | 100mOhm Max | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | ||
| 27 nH | 300 mA | 800mOhm Max | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | ||
| 7.5 nH | 500 mA | 250mOhm Max | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | ||
| 5.1 nH | 250 mA | 450mOhm Max | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | ||
| 1.1 nH | 550 mA | 150mOhm Max | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | ||
| 68 nH | 50 mA | 3.5Ohm Max | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | ||
| 27 nH | 100 mA | 1.5Ohm Max | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | ||
| 0.4 nH | 600 mA | 100mOhm Max | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | ||
| 0.8 nH | 600 mA | 100mOhm Max | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | ||
| 110 nH | 50 mA | 6.5Ohm Max | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | ||
| 0.7 nH | 600 mA | 100mOhm Max | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - |
