Duyệt và tải PDF tài liệu kỹ thuật cuộn cảm từ các nhà sản xuất hàng đầu.
| Sản Phẩm | Độ tự cảm | Định Mức Dòng Điện | Điện Trở (DCR) | Kích Thước | Gói | Hành Động |
|---|---|---|---|---|---|---|
 SDR1806-3R3ML Bourns Inc. | 3.3 µH | 7.6 A | 9.8mOhm Max | 0.720" L x 0.551" W (18.30mm x 14.00mm) | Nonstandard | |
 SDR1806-330ML Bourns Inc. | 33 µH | 3 A | 68mOhm Max | 0.720" L x 0.551" W (18.30mm x 14.00mm) | Nonstandard | |
 SDR1806-470ML Bourns Inc. | 47 µH | 2.5 A | 95mOhm Max | 0.720" L x 0.551" W (18.30mm x 14.00mm) | Nonstandard | |
 SDR1806-331KL Bourns Inc. | 330 µH | 1 A | 580mOhm Max | 0.720" L x 0.551" W (18.30mm x 14.00mm) | Nonstandard | |
 SDR1806-680ML Bourns Inc. | 68 µH | 2.1 A | 130mOhm Max | 0.720" L x 0.551" W (18.30mm x 14.00mm) | Nonstandard | |
 SDR1806-102KL Bourns Inc. | 1 mH | 500 mA | 1.8Ohm Max | 0.720" L x 0.551" W (18.30mm x 14.00mm) | Nonstandard | |
 SDR1806-5R6ML Bourns Inc. | 5.6 µH | 6.4 A | 15mOhm Max | 0.720" L x 0.551" W (18.30mm x 14.00mm) | Nonstandard | |
 SDR1806-681KL Bourns Inc. | 680 µH | 700 mA | 1.2Ohm Max | 0.720" L x 0.551" W (18.30mm x 14.00mm) | Nonstandard | |
 SDR1806-471KL Bourns Inc. | 470 µH | 800 mA | 820mOhm Max | 0.720" L x 0.551" W (18.30mm x 14.00mm) | Nonstandard | |

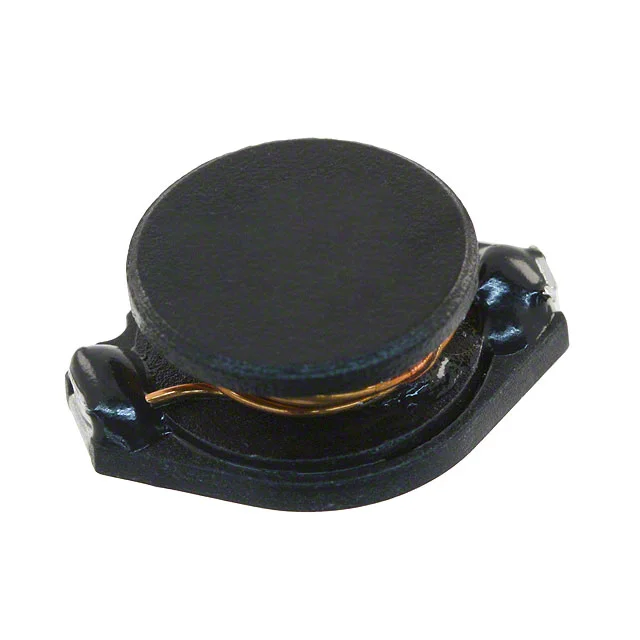

 SDR1806-1R0ML Bourns Inc. | 1 µH | 10 A | 4mOhm Max | 0.720" L x 0.551" W (18.30mm x 14.00mm) | Nonstandard | |
 SDR1806-150ML Bourns Inc. | 15 µH | 4.3 A | 35mOhm Max | 0.720" L x 0.551" W (18.30mm x 14.00mm) | Nonstandard | |
 SDR1806-151KL Bourns Inc. | 150 µH | 1.4 A | 270mOhm Max | 0.720" L x 0.551" W (18.30mm x 14.00mm) | Nonstandard | |
 SDR1806-101KL Bourns Inc. | 100 µH | 1.7 A | 190mOhm Max | 0.720" L x 0.551" W (18.30mm x 14.00mm) | Nonstandard | |
 SDR1806-2R2ML Bourns Inc. | 2.2 µH | 9 A | 6.8mOhm Max | 0.720" L x 0.551" W (18.30mm x 14.00mm) | Nonstandard | |
 SDR1806-100ML Bourns Inc. | 10 µH | 5.3 A | 25mOhm Max | 0.720" L x 0.551" W (18.30mm x 14.00mm) | Nonstandard | |
 SDR1806-8R2ML Bourns Inc. | 8.2 µH | 7 A | 20mOhm Max | 0.720" L x 0.551" W (18.30mm x 14.00mm) | Nonstandard | |
 SDR1806-221KL Bourns Inc. | 220 µH | 1.1 A | 420mOhm Max | 0.720" L x 0.551" W (18.30mm x 14.00mm) | Nonstandard | |
 SDR1806-220ML Bourns Inc. | 22 µH | 3.6 A | 45mOhm Max | 0.720" L x 0.551" W (18.30mm x 14.00mm) | Nonstandard |
