Duyệt và tải PDF tài liệu kỹ thuật cuộn cảm từ các nhà sản xuất hàng đầu.
| Sản Phẩm | Độ tự cảm | Định Mức Dòng Điện | Điện Trở (DCR) | Kích Thước | Gói | Hành Động |
|---|---|---|---|---|---|---|
 SRR1260A-181K Bourns Inc. | 180 µH | 1.4 A | 320mOhm Max | 0.492" L x 0.492" W (12.50mm x 12.50mm) | Nonstandard | |
 SRR1260A-271K Bourns Inc. | 270 µH | 1.3 A | 450mOhm Max | 0.492" L x 0.492" W (12.50mm x 12.50mm) | Nonstandard | |
 SRR1260A-391K Bourns Inc. | 390 µH | 1.08 A | 700mOhm Max | 0.492" L x 0.492" W (12.50mm x 12.50mm) | Nonstandard | |
 SRR1260A-821K Bourns Inc. | 820 µH | 730 mA | 1.5Ohm Max | 0.492" L x 0.492" W (12.50mm x 12.50mm) | Nonstandard | |
 SRR1260A-1R5Y Bourns Inc. | 1.5 µH | 8.8 A | 9.5mOhm Max | 0.492" L x 0.492" W (12.50mm x 12.50mm) | Nonstandard | |
 SRR1260A-2R4Y Bourns Inc. | 2.4 µH | 7.8 A | 11.5mOhm Max | 0.492" L x 0.492" W (12.50mm x 12.50mm) | Nonstandard | |
 SRR1260A-6R1Y Bourns Inc. | 6.1 µH | 6.6 A | 17mOhm Max | 0.492" L x 0.492" W (12.50mm x 12.50mm) | Nonstandard | |
 SRR1260A-7R6Y Bourns Inc. | 7.6 µH | 6 A | 19mOhm Max | 0.492" L x 0.492" W (12.50mm x 12.50mm) | Nonstandard | |
 SRR1260A-390M Bourns Inc. | 39 µH | 2.8 A | 70mOhm Max | 0.492" L x 0.492" W (12.50mm x 12.50mm) | Nonstandard | |
 SRR1260A-820M Bourns Inc. | 82 µH | 1.95 A | 145mOhm Max | 0.492" L x 0.492" W (12.50mm x 12.50mm) | Nonstandard | |
 SRR1260A-101M Bourns Inc. | 100 µH | 1.7 A | 180mOhm Max | 0.492" L x 0.492" W (12.50mm x 12.50mm) | Nonstandard | |
 SRR1260A-120M Bourns Inc. | 12 µH | 5.2 A | 23mOhm Max | 0.492" L x 0.492" W (12.50mm x 12.50mm) | Nonstandard | |

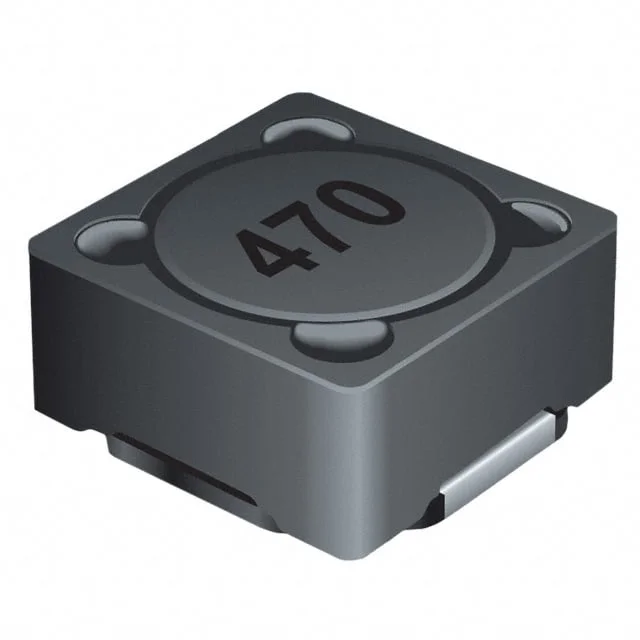

 SRR1260A-5R6Y Bourns Inc. | 5.6 µH | 6.7 A | 16.2mOhm Max | 0.492" L x 0.492" W (12.50mm x 12.50mm) | Nonstandard | |
 SRR1260A-470M Bourns Inc. | 47 µH | 2.6 A | 86mOhm Max | 0.492" L x 0.492" W (12.50mm x 12.50mm) | Nonstandard | |
 SRR1260A-100M Bourns Inc. | 10 µH | 5.5 A | 20mOhm Max | 0.492" L x 0.492" W (12.50mm x 12.50mm) | Nonstandard | |
 SRR1260A-6R8Y Bourns Inc. | 6.8 µH | 6.3 A | 18mOhm Max | 0.492" L x 0.492" W (12.50mm x 12.50mm) | Nonstandard | |
 SRR1260A-4R7Y Bourns Inc. | 4.7 µH | 6.8 A | 15.5mOhm Max | 0.492" L x 0.492" W (12.50mm x 12.50mm) | Nonstandard | |
 SRR1260A-331K Bourns Inc. | 330 µH | 1.15 A | 580mOhm Max | 0.492" L x 0.492" W (12.50mm x 12.50mm) | Nonstandard | |
 SRR1260A-330M Bourns Inc. | 33 µH | 3 A | 60mOhm Max | 0.492" L x 0.492" W (12.50mm x 12.50mm) | Nonstandard | |
 SRR1260A-102K Bourns Inc. | 1 mH | 680 mA | 1.7Ohm Max | 0.492" L x 0.492" W (12.50mm x 12.50mm) | Nonstandard | |
 SRR1260A-1R0Y Bourns Inc. | 1 µH | 9.4 A | 7.8mOhm Max | 0.492" L x 0.492" W (12.50mm x 12.50mm) | Nonstandard | |
 SRR1260A-8R2Y Bourns Inc. | 8.2 µH | 5.7 A | 19.5mOhm Max | 0.492" L x 0.492" W (12.50mm x 12.50mm) | Nonstandard | |
 SRR1260A-151K Bourns Inc. | 150 µH | 1.55 A | 260mOhm Max | 0.492" L x 0.492" W (12.50mm x 12.50mm) | Nonstandard | |
 SRR1260A-150M Bourns Inc. | 15 µH | 5 A | 27mOhm Max | 0.492" L x 0.492" W (12.50mm x 12.50mm) | Nonstandard | |
 SRR1260A-121K Bourns Inc. | 120 µH | 1.65 A | 210mOhm Max | 0.492" L x 0.492" W (12.50mm x 12.50mm) | Nonstandard |
