Datasheets Cuộn Cảm
Duyệt và tải PDF tài liệu kỹ thuật cuộn cảm từ các nhà sản xuất hàng đầu.
Thuộc tính sản phẩm
| Sản Phẩm | Độ tự cảm | Định Mức Dòng Điện | Điện Trở (DCR) | Kích Thước | Gói | Hành Động |
|---|---|---|---|---|---|---|
 SRR7045-120M Bourns Inc. | 12 µH | 2.4 A | 50mOhm Max | 0.276" L x 0.276" W (7.00mm x 7.00mm) | Nonstandard | |
 SRR7045-180M Bourns Inc. | 18 µH | 2.1 A | 70mOhm Max | 0.276" L x 0.276" W (7.00mm x 7.00mm) | Nonstandard | |
 SRR7045-2R7M Bourns Inc. | 2.7 µH | 3.5 A | 27mOhm Max | 0.276" L x 0.276" W (7.00mm x 7.00mm) | Nonstandard | |
 SRR7045-5R6M Bourns Inc. | 5.6 µH | 3.2 A | 36mOhm Max | 0.276" L x 0.276" W (7.00mm x 7.00mm) | Nonstandard | |
 SRR7045-6R3M Bourns Inc. | 6.3 µH | 2.45 A | 38mOhm Max | 0.276" L x 0.276" W (7.00mm x 7.00mm) | Nonstandard | |
 SRR7045-102M Bourns Inc. | 1 mH | 330 mA | 2.4Ohm Max | 0.276" L x 0.276" W (7.00mm x 7.00mm) | Nonstandard | |
 SRR7045-101M Bourns Inc. | 100 µH | 1 A | 300mOhm Max | 0.276" L x 0.276" W (7.00mm x 7.00mm) | Nonstandard | |
 SRR7045-100M Bourns Inc. | 10 µH | 2.7 A | 42mOhm Max | 0.276" L x 0.276" W (7.00mm x 7.00mm) | Nonstandard | |
 SRR7045-471M Bourns Inc. | 470 µH | 500 mA | 1.1Ohm Max | 0.276" L x 0.276" W (7.00mm x 7.00mm) | Nonstandard | |
 SRR7045-151M Bourns Inc. | 150 µH | 800 mA | 480mOhm Max | 0.276" L x 0.276" W (7.00mm x 7.00mm) | Nonstandard | |
 SRR7045-221M Bourns Inc. | 220 µH | 640 mA | 700mOhm Max | 0.276" L x 0.276" W (7.00mm x 7.00mm) | Nonstandard | |
 SRR7045-470M Bourns Inc. | 47 µH | 1.4 A | 150mOhm Max | 0.276" L x 0.276" W (7.00mm x 7.00mm) | Nonstandard | |
 SRR7045-680M Bourns Inc. | 68 µH | 1.2 A | 210mOhm Max | 0.276" L x 0.276" W (7.00mm x 7.00mm) | Nonstandard | |
 SRR7045-331M Bourns Inc. | 330 µH | 600 mA | 730mOhm Max | 0.276" L x 0.276" W (7.00mm x 7.00mm) | Nonstandard | |

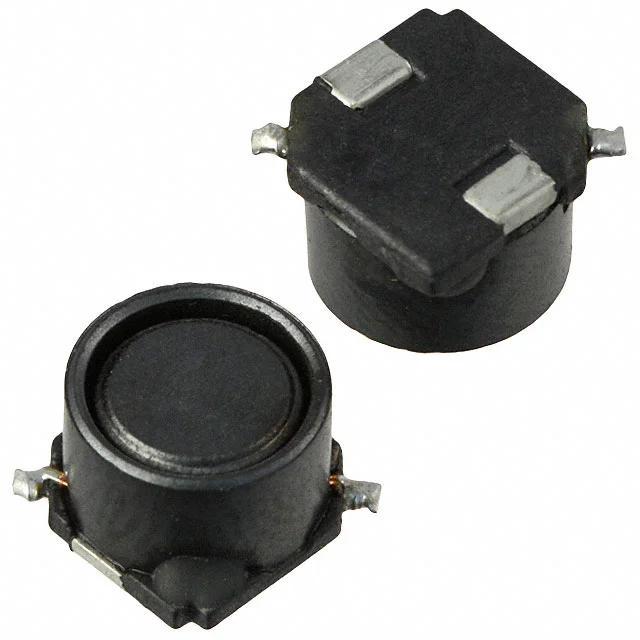

 SRR7045-561M Bourns Inc. | 560 µH | 450 mA | 1.6Ohm Max | 0.276" L x 0.276" W (7.00mm x 7.00mm) | Nonstandard | |
 SRR7045-560M Bourns Inc. | 56 µH | 1.3 A | 200mOhm Max | 0.276" L x 0.276" W (7.00mm x 7.00mm) | Nonstandard | |
 SRR7045-220M Bourns Inc. | 22 µH | 1.9 A | 70mOhm Max | 0.276" L x 0.276" W (7.00mm x 7.00mm) | Nonstandard | |
 SRR7045-6R8M Bourns Inc. | 6.8 µH | 3.1 A | 36mOhm Max | 0.276" L x 0.276" W (7.00mm x 7.00mm) | Nonstandard | |
 SRR7045-121M Bourns Inc. | 120 µH | 900 mA | 420mOhm Max | 0.276" L x 0.276" W (7.00mm x 7.00mm) | Nonstandard | |
 SRR7045-821M Bourns Inc. | 820 µH | 370 mA | 2.2Ohm Max | 0.276" L x 0.276" W (7.00mm x 7.00mm) | Nonstandard | |
 SRR7045-3R9M Bourns Inc. | 3.9 µH | 3.4 A | 28mOhm Max | 0.276" L x 0.276" W (7.00mm x 7.00mm) | Nonstandard | |
 SRR7045-1R0M Bourns Inc. | 1 µH | 5.2 A | 20mOhm Max | 0.276" L x 0.276" W (7.00mm x 7.00mm) | Nonstandard | |
 SRR7045-3R3M Bourns Inc. | 3.3 µH | 3.5 A | 27mOhm Max | 0.276" L x 0.276" W (7.00mm x 7.00mm) | Nonstandard | |
 SRR7045-271M Bourns Inc. | 270 µH | 620 mA | 840mOhm Max | 0.276" L x 0.276" W (7.00mm x 7.00mm) | Nonstandard | |
 SRR7045-390M Bourns Inc. | 39 µH | 1.5 A | 130mOhm Max | 0.276" L x 0.276" W (7.00mm x 7.00mm) | Nonstandard |
