Datasheets Cuộn Cảm
Duyệt và tải PDF tài liệu kỹ thuật cuộn cảm từ các nhà sản xuất hàng đầu.
Thuộc tính sản phẩm
| Sản Phẩm | Độ tự cảm | Định Mức Dòng Điện | Điện Trở (DCR) | Kích Thước | Gói | Hành Động |
|---|---|---|---|---|---|---|
 744308033 Würth Elektronik | 330 nH | 25 A | 0.37mOhm | 0.398" L x 0.276" W (10.10mm x 7.00mm) | Nonstandard | |

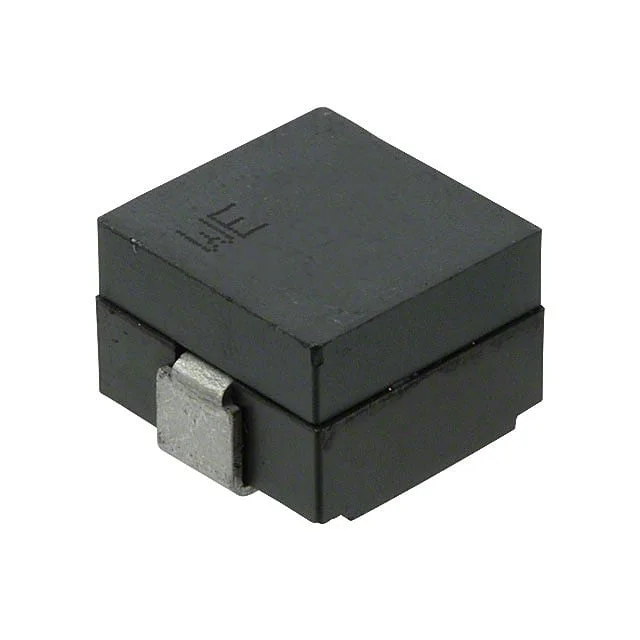

 744309033 Würth Elektronik | 330 nH | 47.5 A | 0.165mOhm | 0.551" L x 0.512" W (14.00mm x 13.00mm) | Nonstandard | |
 744303012 Würth Elektronik | 120 nH | 31 A | 0.325mOhm | 0.394" L x 0.276" W (10.00mm x 7.00mm) | Nonstandard | |
 74435030010 Würth Elektronik | 100 nH | 27 A | 0.31mOhm | 0.197" L x 0.122" W (5.00mm x 3.10mm) | Nonstandard | |

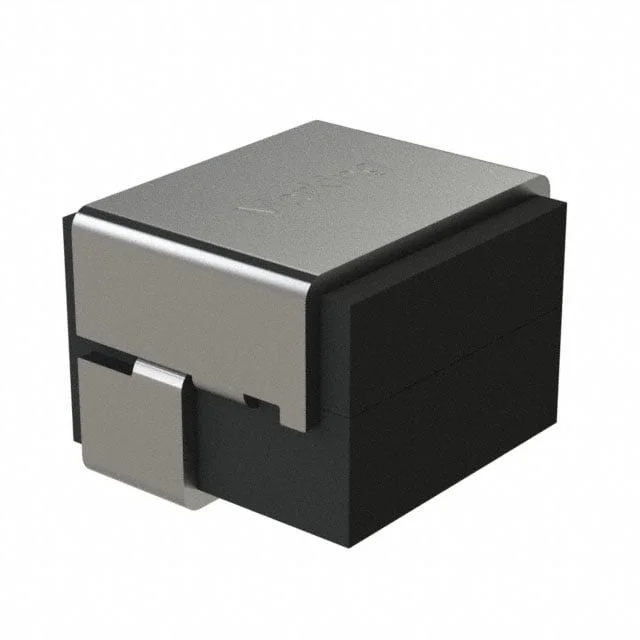

 7443091100 Würth Elektronik | 1 µH | 34 A | 0.42mOhm | 0.571" L x 0.531" W (14.50mm x 13.50mm) | Nonstandard | |
 744309047 Würth Elektronik | 470 nH | 47.5 A | 0.165mOhm | 0.551" L x 0.512" W (14.00mm x 13.00mm) | Nonstandard | |
 744309025 Würth Elektronik | 250 nH | 47.5 A | 0.165mOhm | 0.551" L x 0.512" W (14.00mm x 13.00mm) | Nonstandard | |
 7443081015 Würth Elektronik | 150 nH | 38 A | 0.29mOhm | 0.370" L x 0.244" W (9.40mm x 6.20mm) | Nonstandard | |
 744340300025 Würth Elektronik | 25 nH | 27 A | 0.27mOhm | 0.189" L x 0.122" W (4.80mm x 3.10mm) | Nonstandard | |
 744301047 Würth Elektronik | 470 nH | 38 A | 0.32mOhm | 0.445" L x 0.433" W (11.30mm x 11.00mm) | Nonstandard | |
 744307022 Würth Elektronik | 220 nH | 26 A | 0.29mOhm | 0.276" L x 0.276" W (7.00mm x 7.00mm) | Nonstandard | |

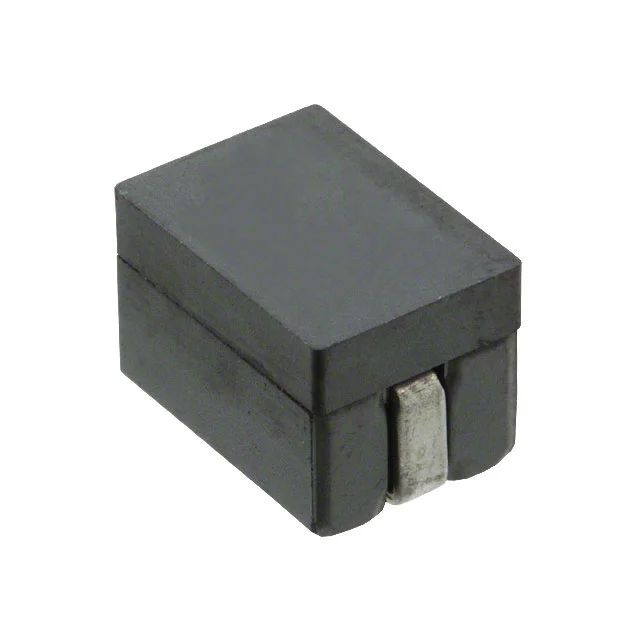

 744308040 Würth Elektronik | 400 nH | 25 A | 0.37mOhm | 0.398" L x 0.276" W (10.10mm x 7.00mm) | Nonstandard | |
 744303015 Würth Elektronik | 155 nH | 31 A | 0.325mOhm | 0.394" L x 0.276" W (10.00mm x 7.00mm) | Nonstandard | |

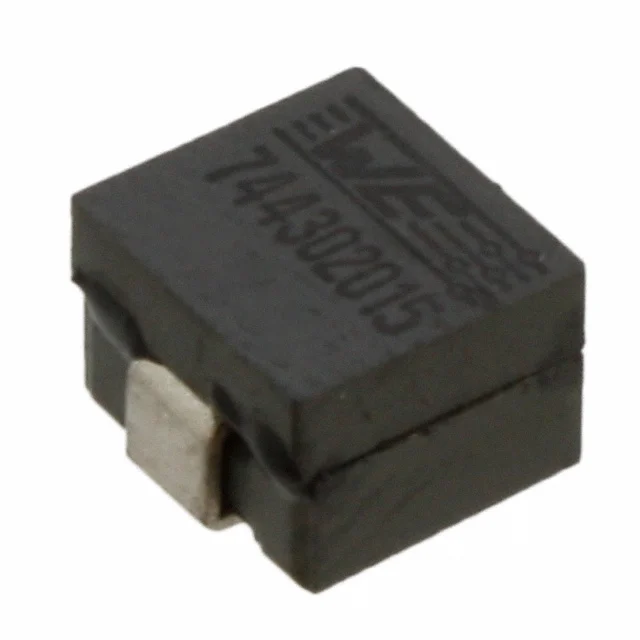

 744302015 Würth Elektronik | 150 nH | 30 A | 0.235mOhm | 0.281" L x 0.276" W (7.15mm x 7.00mm) | Nonstandard | |

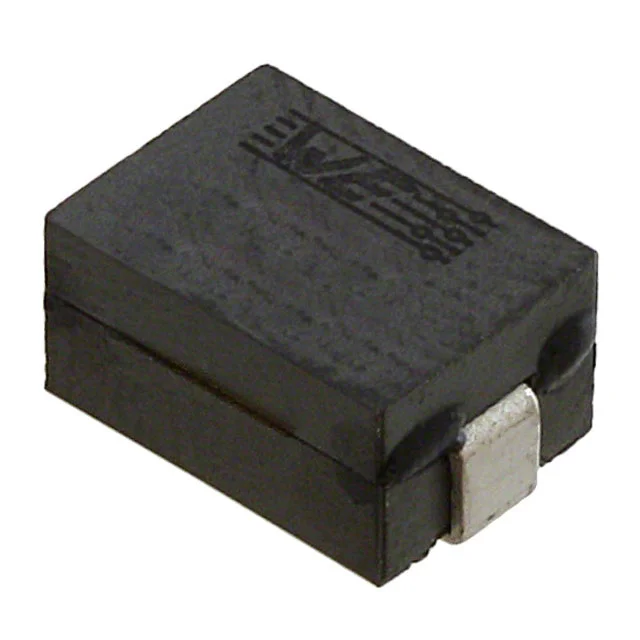

 744303022 Würth Elektronik | 220 nH | 31 A | 0.325mOhm | 0.394" L x 0.276" W (10.00mm x 7.00mm) | Nonstandard | |

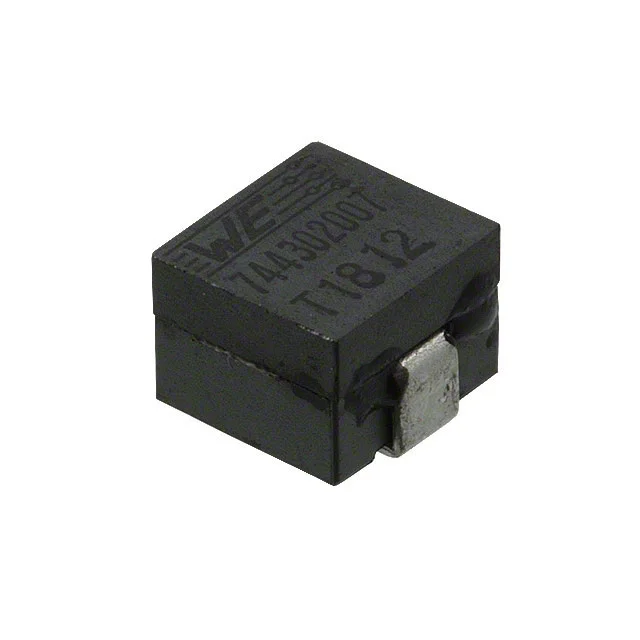

 744302007 Würth Elektronik | 72 nH | 30 A | 0.235mOhm | 0.281" L x 0.276" W (7.15mm x 7.00mm) | Nonstandard | |

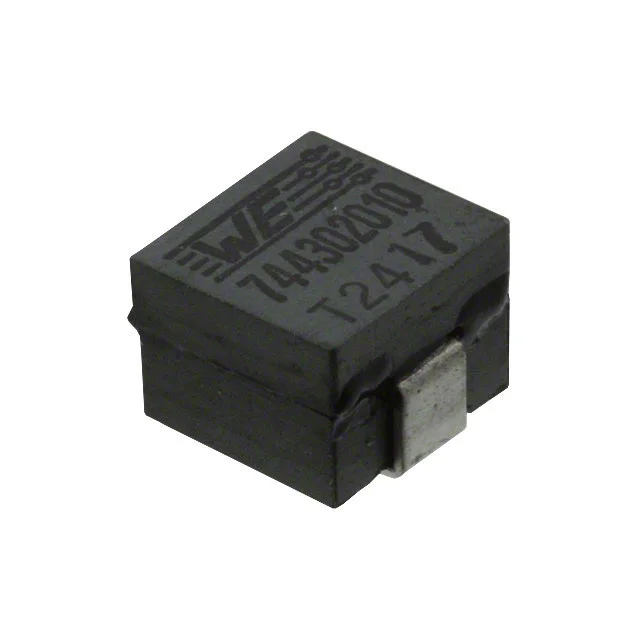

 744302010 Würth Elektronik | 105 nH | 30 A | 0.235mOhm | 0.281" L x 0.276" W (7.15mm x 7.00mm) | Nonstandard | |

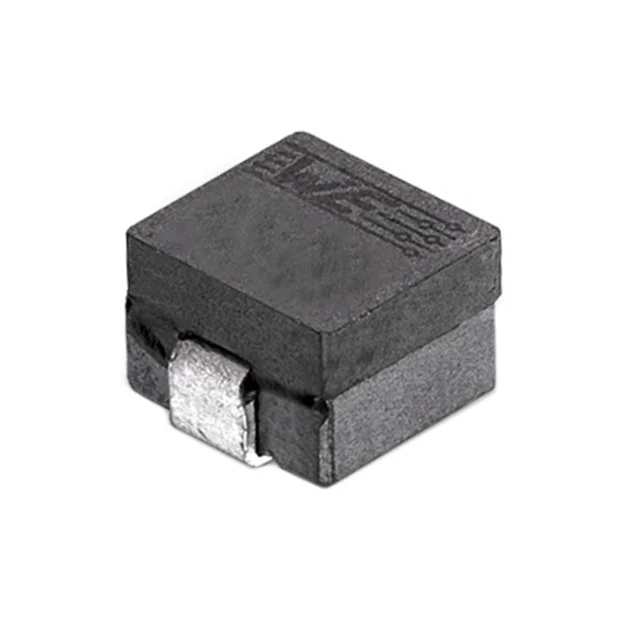

 7443082022 Würth Elektronik | 220 nH | 60 A | 0.18mOhm | 0.402" L x 0.315" W (10.20mm x 8.00mm) | Nonstandard | |
 7443082012 Würth Elektronik | 120 nH | 60 A | 0.18mOhm | 0.402" L x 0.315" W (10.20mm x 8.00mm) | Nonstandard | |
 744308015 Würth Elektronik | 150 nH | 25 A | 0.37mOhm | 0.398" L x 0.276" W (10.10mm x 7.00mm) | Nonstandard | |
 744301025 Würth Elektronik | 250 nH | 38 A | 0.32mOhm | 0.445" L x 0.433" W (11.30mm x 11.00mm) | Nonstandard | |
 744306025 Würth Elektronik | 250 nH | 25 A | 0.26mOhm | 0.413" L x 0.406" W (10.50mm x 10.30mm) | Nonstandard | |
 744308025 Würth Elektronik | 250 nH | 25 A | 0.37mOhm | 0.398" L x 0.276" W (10.10mm x 7.00mm) | Nonstandard | |
 744306020 Würth Elektronik | 200 nH | 25 A | 0.26mOhm | 0.413" L x 0.406" W (10.50mm x 10.30mm) | Nonstandard | |
 744308020 Würth Elektronik | 200 nH | 25 A | 0.37mOhm | 0.398" L x 0.276" W (10.10mm x 7.00mm) | Nonstandard |
