Datasheets Cuộn Cảm
Duyệt và tải PDF tài liệu kỹ thuật cuộn cảm từ các nhà sản xuất hàng đầu.
Thuộc tính sản phẩm
| Sản Phẩm | Độ tự cảm | Định Mức Dòng Điện | Điện Trở (DCR) | Kích Thước | Gói | Hành Động |
|---|---|---|---|---|---|---|
 74405024047 Würth Elektronik | 4.7 µH | 1 A | 270mOhm Max | 0.098" L x 0.079" W (2.50mm x 2.00mm) | Nonstandard | |
 74405042033 Würth Elektronik | 3.3 µH | 2.3 A | 72mOhm Max | 0.157" L x 0.146" W (4.00mm x 3.70mm) | Nonstandard | |
 74405042047 Würth Elektronik | 4.7 µH | 2.1 A | 108mOhm Max | 0.157" L x 0.146" W (4.00mm x 3.70mm) | Nonstandard | |
 74405042100 Würth Elektronik | 10 µH | 1.7 A | 216mOhm Max | 0.157" L x 0.146" W (4.00mm x 3.70mm) | Nonstandard | |
 74405042068 Würth Elektronik | 6.8 µH | 1.9 A | 156mOhm Max | 0.157" L x 0.146" W (4.00mm x 3.70mm) | Nonstandard | |
 74405020022 Würth Elektronik | 2.2 µH | 1.25 A | 170mOhm Max | 0.079" L x 0.063" W (2.00mm x 1.60mm) | Nonstandard | |
 74405024015 Würth Elektronik | 1.5 µH | 2.1 A | 72mOhm Max | 0.098" L x 0.079" W (2.50mm x 2.00mm) | Nonstandard | |
 74405024033 Würth Elektronik | 3.3 µH | 1.3 A | 163mOhm Max | 0.098" L x 0.079" W (2.50mm x 2.00mm) | Nonstandard | |
 74405024100 Würth Elektronik | 10 µH | 800 mA | 522mOhm Max | 0.098" L x 0.079" W (2.50mm x 2.00mm) | Nonstandard | |
 74405024022 Würth Elektronik | 2.2 µH | 1.6 A | 120mOhm Max | 0.098" L x 0.079" W (2.50mm x 2.00mm) | Nonstandard | |
 74405020100 Würth Elektronik | 10 µH | 580 mA | 816mOhm Max | 0.079" L x 0.063" W (2.00mm x 1.60mm) | Nonstandard | |
 74405031047 Würth Elektronik | 4.7 µH | 1.2 A | 235mOhm Max | 0.118" L x 0.106" W (3.00mm x 2.70mm) | Nonstandard | |
 74405031022 Würth Elektronik | 2.2 µH | 1.75 A | 108mOhm Max | 0.118" L x 0.106" W (3.00mm x 2.70mm) | Nonstandard | |
 74405042022 Würth Elektronik | 2.2 µH | 2.6 A | 48mOhm Max | 0.157" L x 0.146" W (4.00mm x 3.70mm) | Nonstandard | |
 74405031033 Würth Elektronik | 3.3 µH | 1.55 A | 155mOhm Max | 0.118" L x 0.106" W (3.00mm x 2.70mm) | Nonstandard | |
 744050420047 Würth Elektronik | 470 nH | 4.5 A | 22mOhm Max | 0.157" L x 0.146" W (4.00mm x 3.70mm) | Nonstandard | |

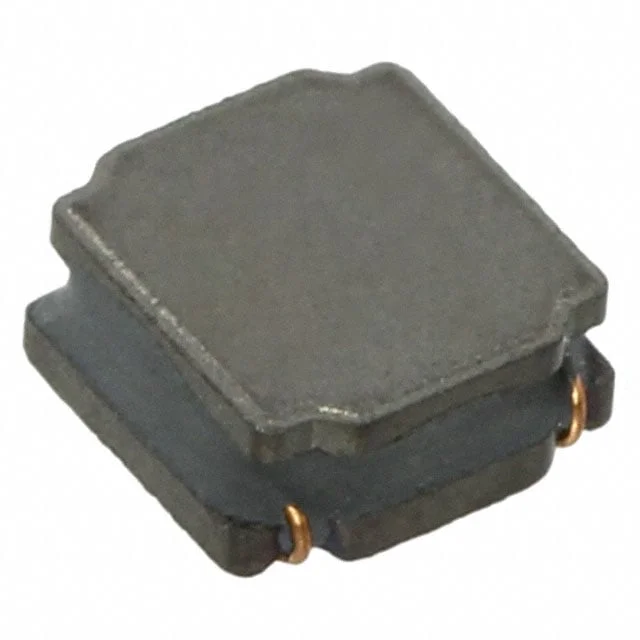

 74405042010 Würth Elektronik | 1 µH | 4 A | 26mOhm Max | 0.157" L x 0.146" W (4.00mm x 3.70mm) | Nonstandard | |
 74405020047 Würth Elektronik | 4.7 µH | 800 mA | 444mOhm Max | 0.079" L x 0.063" W (2.00mm x 1.60mm) | Nonstandard | |
 744050240047 Würth Elektronik | 470 nH | 2.9 A | 35mOhm Max | 0.098" L x 0.079" W (2.50mm x 2.00mm) | Nonstandard | |
 74405031015 Würth Elektronik | 1.5 µH | 2.2 A | 77mOhm Max | 0.118" L x 0.106" W (3.00mm x 2.70mm) | Nonstandard | |
 74405031100 Würth Elektronik | 10 µH | 850 mA | 474mOhm Max | 0.118" L x 0.106" W (3.00mm x 2.70mm) | Nonstandard | |
 74405042015 Würth Elektronik | 1.5 µH | 3.2 A | 36mOhm Max | 0.157" L x 0.146" W (4.00mm x 3.70mm) | Nonstandard | |
 74405024010 Würth Elektronik | 1 µH | 2.35 A | 58mOhm Max | 0.098" L x 0.079" W (2.50mm x 2.00mm) | Nonstandard | |
 744050200047 Würth Elektronik | 470 nH | 2.2 A | 49mOhm Max | 0.079" L x 0.063" W (2.00mm x 1.60mm) | Nonstandard | |
 74405020010 Würth Elektronik | 1 µH | 1.65 A | 90mOhm Max | 0.079" L x 0.063" W (2.00mm x 1.60mm) | Nonstandard |
