Datasheets Cuộn Cảm
Duyệt và tải PDF tài liệu kỹ thuật cuộn cảm từ các nhà sản xuất hàng đầu.
Thuộc tính sản phẩm
| Sản Phẩm | Độ tự cảm | Định Mức Dòng Điện | Điện Trở (DCR) | Kích Thước | Gói | Hành Động |
|---|---|---|---|---|---|---|
 7447779006 Würth Elektronik | 6.8 µH | 2.91 A | 35mOhm Max | 0.287" L x 0.287" W (7.30mm x 7.30mm) | Nonstandard | |
 7447779147 Würth Elektronik | 47 µH | 1.03 A | 260mOhm Max | 0.287" L x 0.287" W (7.30mm x 7.30mm) | Nonstandard | |
 7447779122 Würth Elektronik | 22 µH | 1.41 A | 110mOhm Max | 0.287" L x 0.287" W (7.30mm x 7.30mm) | Nonstandard | |
 7447785002 Würth Elektronik | 2.2 µH | 2.9 A | 54mOhm Max | 0.244" L x 0.232" W (6.20mm x 5.90mm) | Nonstandard | |
 744777910 Würth Elektronik | 10 µH | 2 A | 49mOhm Max | 0.287" L x 0.287" W (7.30mm x 7.30mm) | Nonstandard | |

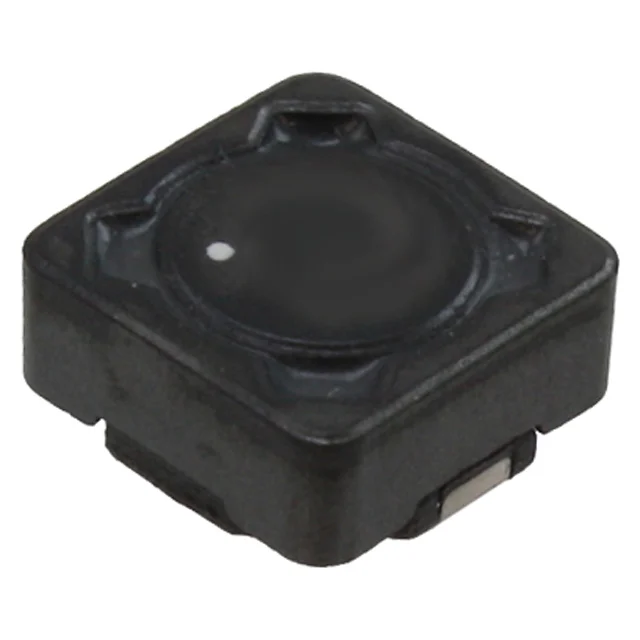

 744778910 Würth Elektronik | 10 µH | 1.83 A | 72mOhm Max | 0.287" L x 0.287" W (7.30mm x 7.30mm) | Nonstandard | |
 744777920 Würth Elektronik | 100 µH | 790 mA | 380mOhm Max | 0.287" L x 0.287" W (7.30mm x 7.30mm) | Nonstandard | |
 744778520 Würth Elektronik | 100 µH | 650 mA | 1.06Ohm Max | 0.244" L x 0.232" W (6.20mm x 5.90mm) | Nonstandard | |
 7447786122 Würth Elektronik | 22 µH | 2 A | 115mOhm Max | 0.244" L x 0.232" W (6.20mm x 5.90mm) | Nonstandard | |
 7447786008 Würth Elektronik | 8.2 µH | 2.3 A | 80mOhm Max | 0.244" L x 0.232" W (6.20mm x 5.90mm) | Nonstandard | |
 7447786147 Würth Elektronik | 47 µH | 1.4 A | 298mOhm Max | 0.244" L x 0.232" W (6.20mm x 5.90mm) | Nonstandard | |
 7447779001 Würth Elektronik | 1 µH | 5.3 A | 15mOhm Max | 0.287" L x 0.287" W (7.30mm x 7.30mm) | Nonstandard | |
 7447779002 Würth Elektronik | 2.2 µH | 4.2 A | 20mOhm Max | 0.287" L x 0.287" W (7.30mm x 7.30mm) | Nonstandard | |
 7447779156 Würth Elektronik | 56 µH | 930 mA | 350mOhm Max | 0.287" L x 0.287" W (7.30mm x 7.30mm) | Nonstandard | |
 7447779168 Würth Elektronik | 68 µH | 870 mA | 380mOhm Max | 0.287" L x 0.287" W (7.30mm x 7.30mm) | Nonstandard | |
 7447779115 Würth Elektronik | 15 µH | 1.6 A | 81mOhm Max | 0.287" L x 0.287" W (7.30mm x 7.30mm) | Nonstandard | |
 7447779222 Würth Elektronik | 220 µH | 440 mA | 1.17Ohm Max | 0.287" L x 0.287" W (7.30mm x 7.30mm) | Nonstandard | |
 7447779004 Würth Elektronik | 4.7 µH | 3.16 A | 32mOhm Max | 0.287" L x 0.287" W (7.30mm x 7.30mm) | Nonstandard | |
 7447779270 Würth Elektronik | 270 µH | 430 mA | 1.64Ohm Max | 0.287" L x 0.287" W (7.30mm x 7.30mm) | Nonstandard | |
 744778510 Würth Elektronik | 10 µH | 1.9 A | 125mOhm Max | 0.244" L x 0.232" W (6.20mm x 5.90mm) | Nonstandard | |
 7447785003 Würth Elektronik | 3.3 µH | 2.8 A | 67mOhm Max | 0.244" L x 0.232" W (6.20mm x 5.90mm) | Nonstandard | |
 744778610 Würth Elektronik | 10 µH | 2.1 A | 88mOhm Max | 0.244" L x 0.232" W (6.20mm x 5.90mm) | Nonstandard | |
 7447789006 Würth Elektronik | 6.8 µH | 2.5 A | 44mOhm Max | 0.287" L x 0.287" W (7.30mm x 7.30mm) | Nonstandard | |
 7447785122 Würth Elektronik | 22 µH | 1.35 A | 250mOhm Max | 0.244" L x 0.232" W (6.20mm x 5.90mm) | Nonstandard | |
 744778920 Würth Elektronik | 100 µH | 620 mA | 790mOhm Max | 0.287" L x 0.287" W (7.30mm x 7.30mm) | Nonstandard |
