Laden Sie PDF-Datenblätter für Induktivitäten von führenden Herstellern herunter.
| Produkt | Induktivität | Strom | DCR | Größe | Gehäuse | Aktionen |
|---|---|---|---|---|---|---|
 IC0805A821R-10 Laird | 820 nH | 150 mA | 1Ohm Max | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0805 (2012 Metric) | |
 IC1206A332R-10 Laird | 3.33 µH | 50 mA | 700mOhm Max | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 1206 (3216 Metric) | |
 IC1206B331R-10 Laird | 330 nH | 250 mA | 500mOhm Max | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 1206 (3216 Metric) | |
 IC1206B821R-10 Laird | 820 nH | 150 mA | 900mOhm Max | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 1206 (3216 Metric) | |
 IC1206A103R-10 Laird | 10 µH | 25 mA | 1Ohm Max | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 1206 (3216 Metric) | |
 IC1206B153R-10 Laird | 15 µH | 5 mA | 700mOhm Max | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 1206 (3216 Metric) | |
 IC1206B183R-10 Laird | 18 µH | 5 mA | 700mOhm Max | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 1206 (3216 Metric) | |
 IC1206A333R-10 Laird | 33 µH | 5 mA | 1.05Ohm Max | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 1206 (3216 Metric) | |
 IC0603A102R-10 Laird | 1 µH | 25 mA | 600mOhm Max | 0.063 L x 0.031 W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
 IC0603A182R-10 Laird | 1.8 µH | 25 mA | 950mOhm Max | 0.063 L x 0.031 W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
 IC0603A681R-10 Laird | 680 nH | 35 mA | 1.7Ohm Max | 0.063 L x 0.031 W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
 IC0603B181R-10 Laird | 180 nH | 200 mA | 600mOhm Max | 0.063 L x 0.031 W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
 IC0603B470R-10 Laird | 47 nH | 200 mA | 300mOhm Max | 0.063 L x 0.031 W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
 IC0603B820R-10 Laird | 82 nH | 200 mA | 300mOhm Max | 0.063 L x 0.031 W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
 IC0805A681R-10 Laird | 680 nH | 150 mA | 800mOhm Max | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0805 (2012 Metric) | |
 IC0805A822R-10 Laird | 8.2 µH | 15 mA | 1.1Ohm Max | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0805 (2012 Metric) | |
 IC0805C470R-10 Laird | 47 nH | 300 mA | 200mOhm Max | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0805 (2012 Metric) | |
 IC0805B222R-10 Laird | 2.2 µH | 30 mA | 650mOhm Max | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0805 (2012 Metric) | |
 IC0805C680R-10 Laird | 68 nH | 300 mA | 200mOhm Max | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0805 (2012 Metric) | |
 IC0603A103R-10 Laird | 10 µH | 15 mA | 2.55Ohm Max | 0.063 L x 0.031 W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
 IC0805A272R-10 Laird | 2.7 µH | 30 mA | 750mOhm Max | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0805 (2012 Metric) | |
 IC0805A103R-10 Laird | 10 µH | 15 mA | 1.15Ohm Max | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0805 (2012 Metric) | |
 IC0805A153R-10 Laird | 15 µH | 5 mA | 800mOhm Max | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0805 (2012 Metric) | |
 IC0805A183R-10 Laird | 18 µH | 5 mA | 900mOhm Max | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0805 (2012 Metric) | |

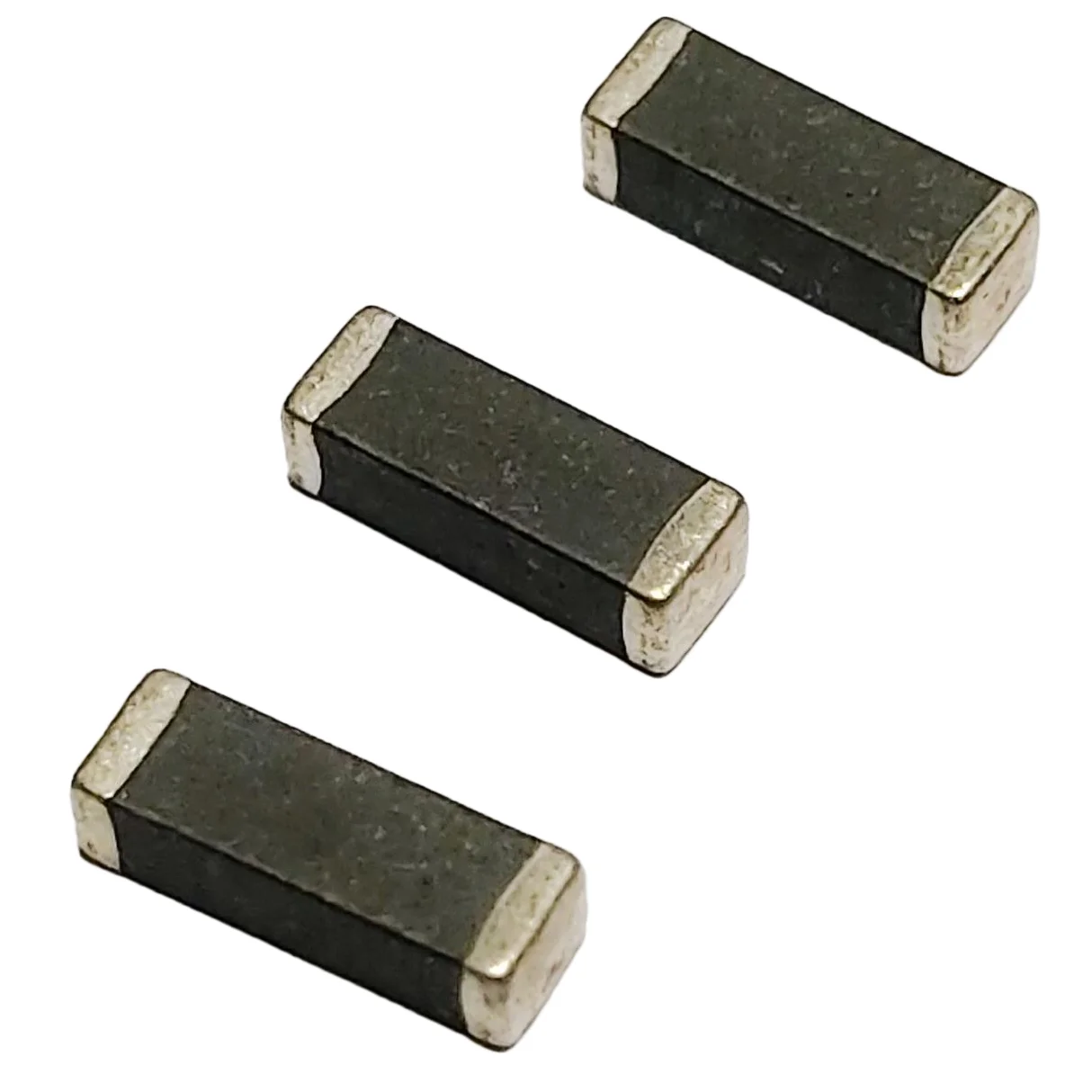

 IC0805B102R-10 Laird | 1 µH | 50 mA | 400mOhm Max | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0805 (2012 Metric) |
