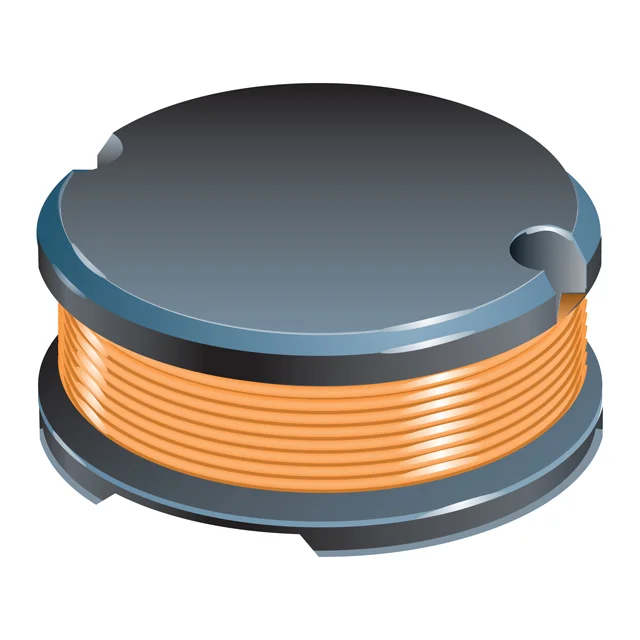

SDR1307A-270M

SDR1307A-270M

Bourns

SMD

Specifications

Inductance
27 µH
Current Rating
3.3 A
DC Resistance
60mOhm Max
Dimensions
13.00x7.30mm

Quick Tools

Use these calculators to help with your inductor design

Download Datasheet

PDF format

Download PDF
