Description
FIXED IND 390UH 1A 460 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 1110-391K.
1110-391K has an inductance value of 390 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
1110-391K is rated for 1 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
1110-391K lists a DC resistance of 460mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.

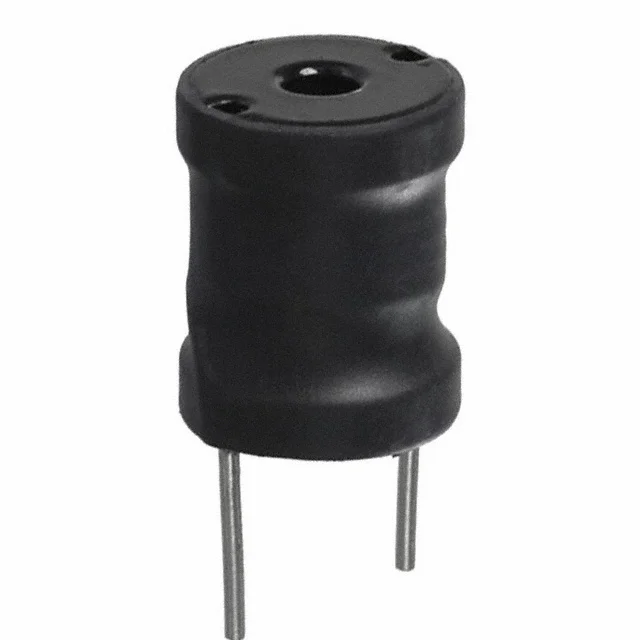

1110-391K uses a package or case of Radial, Vertical Cylinder. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 1110-391K to manufacturer, series, and broader datasheet collections.
Similar-specification candidates · Engineering review required
Screened against recorded construction, core, mounting, dimensions and current/DCR. Land pattern, test conditions and circuit compatibility still require validation.
Missing evidence or no candidates passed screening. A replacement cannot be determined; request a review of the original datasheets.
Product Attributes
| Inductance | 390 µH |
| Tolerance | ±10% |
| Current Rating | 1 A |
| DC Resistance (DCR) | 460mOhm Max |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.660" Dia (16.76mm) |
| Case / Size | Radial, Vertical Cylinder |
| Package / Case | Radial, Vertical Cylinder |
| Supplier | Bourns Inc. |
| Description | FIXED IND 390UH 1A 460 MOHM TH |
| Series | 1110 |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Through Hole |
| Height - Seated (Max) | 0.840" (21.34mm) |
