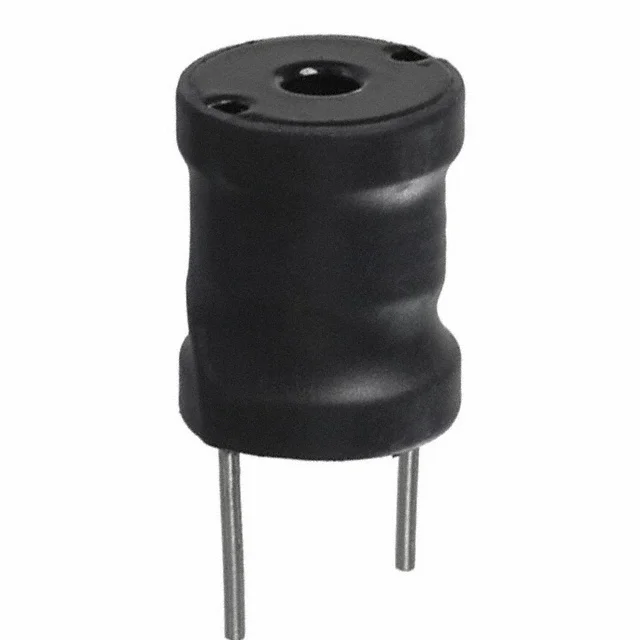

Description
FIXED IND 82UH 2.8A 83 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 1110-820K-RC.
1110-820K-RC has an inductance value of 82 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
1110-820K-RC is rated for 2.8 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
1110-820K-RC lists a DC resistance of 83mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
1110-820K-RC uses a package or case of Radial. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 1110-820K-RC to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 82 µH |
| Tolerance | ±10% |
| Current Rating | 2.8 A |
| DC Resistance (DCR) | 83mOhm Max |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.660" Dia (16.76mm) |
| Case / Size | Radial |
| Package / Case | Radial |
| Supplier | Bourns Inc. |
| Description | FIXED IND 82UH 2.8A 83 MOHM TH |
| Series | 1110 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Through Hole |
| Height - Seated (Max) | 0.840" (21.34mm) |
