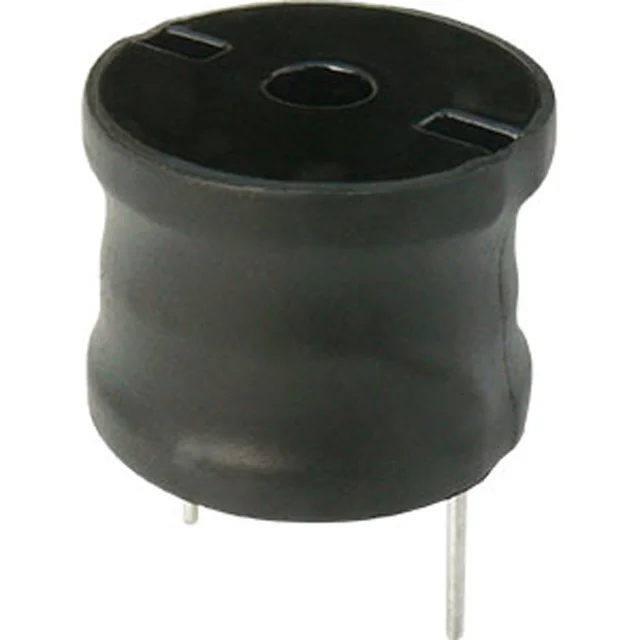

Description
FIXED IND 15UH 9A 13 MOHM TH
Specifications
Inductance
15 µH
Current Rating
9 A
DC Resistance (DCR)
13mOhm Max
Dimensions
0.810" Dia (20.57mm)
Product Attributes
Manufacturer Verified
Last verified: 6/11/2026| Inductance | 15 µH |
| Tolerance | ±10% |
| Current Rating | 9 A |
| DC Resistance (DCR) | 13mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.810" Dia (20.57mm) |
| Case / Size | Radial, Vertical Cylinder |
| Supplier | Bourns Inc. |
| Description | FIXED IND 15UH 9A 13 MOHM TH |
| Series | 1120 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Through Hole |
| supplierDevicePackage | Radial |
| heightMax | 0.840" (21.34mm) |
| features | - |
