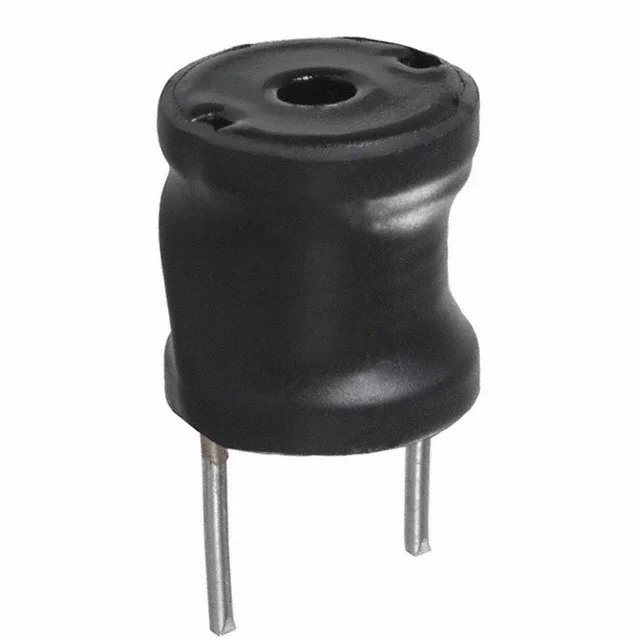

FIXED IND 1.8UH 11.4A 3 MOHM TH
| Inductance | 1.8 µH |
| Tolerance | ±20% |
| Current Rating | 11.4 A |
| DC Resistance (DCR) | 3mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.810" Dia (20.57mm) |
| Case / Size | Radial, Vertical Cylinder |
| Supplier | Bourns Inc. |
| Description | FIXED IND 1.8UH 11.4A 3 MOHM TH |
| Series | 1120 |
| productStatus | Obsolete |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Through Hole |
| supplierDevicePackage | - |
| heightMax | 0.840" (21.34mm) |
