Description

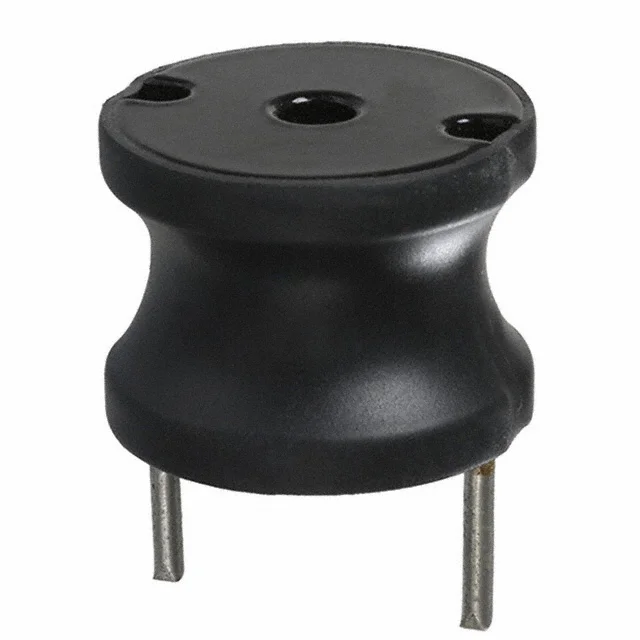

FIXED IND 150UH 5.5A 64 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 1130-151K-RC.
1130-151K-RC has an inductance value of 150 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
1130-151K-RC is rated for 5.5 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
1130-151K-RC lists a DC resistance of 64mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
1130-151K-RC uses a package or case of Radial. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 1130-151K-RC to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 150 µH |
| Tolerance | ±10% |
| Current Rating | 5.5 A |
| DC Resistance (DCR) | 64mOhm Max |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 1.100" Dia (27.94mm) |
| Case / Size | Radial |
| Package / Case | Radial |
| Supplier | Bourns Inc. |
| Description | FIXED IND 150UH 5.5A 64 MOHM TH |
| Series | 1130 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Through Hole |
| Height - Seated (Max) | 0.840" (21.34mm) |
