Description

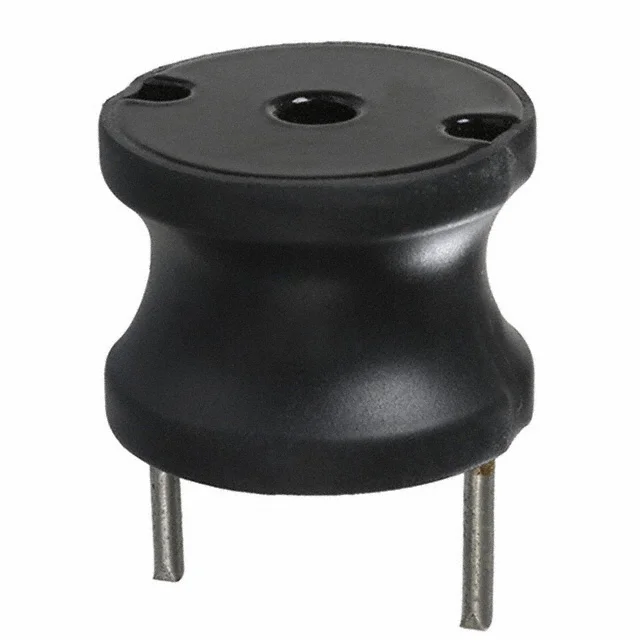

FIXED IND 2.7UH 21A 3 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 1130-2R7M-RC.
1130-2R7M-RC has an inductance value of 2.7 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
1130-2R7M-RC is rated for 21 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
1130-2R7M-RC lists a DC resistance of 3mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
1130-2R7M-RC uses a package or case of Radial. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 1130-2R7M-RC to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 2.7 µH |
| Tolerance | ±20% |
| Current Rating | 21 A |
| DC Resistance (DCR) | 3mOhm Max |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 1.100" Dia (27.94mm) |
| Case / Size | Radial |
| Package / Case | Radial |
| Supplier | Bourns Inc. |
| Description | FIXED IND 2.7UH 21A 3 MOHM TH |
| Series | 1130 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Through Hole |
| Height - Seated (Max) | 0.840" (21.34mm) |
