Description
FIXED IND 56UH 9A 26 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 1130-560K.
1130-560K has an inductance value of 56 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
1130-560K is rated for 9 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
1130-560K lists a DC resistance of 26mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
1130-560K uses a package or case of Radial, Vertical Cylinder. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 1130-560K to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 56 µH |
| Tolerance | ±10% |
| Current Rating | 9 A |
| DC Resistance (DCR) | 26mOhm Max |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 1.100" Dia (27.94mm) |
| Case / Size | Radial, Vertical Cylinder |
| Package / Case | Radial, Vertical Cylinder |
| Supplier | Bourns Inc. |

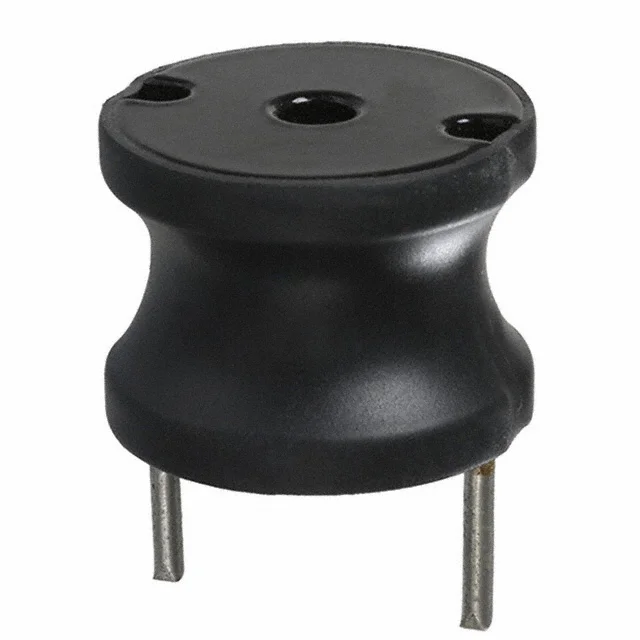

| Description | FIXED IND 56UH 9A 26 MOHM TH |
| Series | 1130 |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Through Hole |
| Height - Seated (Max) | 0.840" (21.34mm) |
