Description

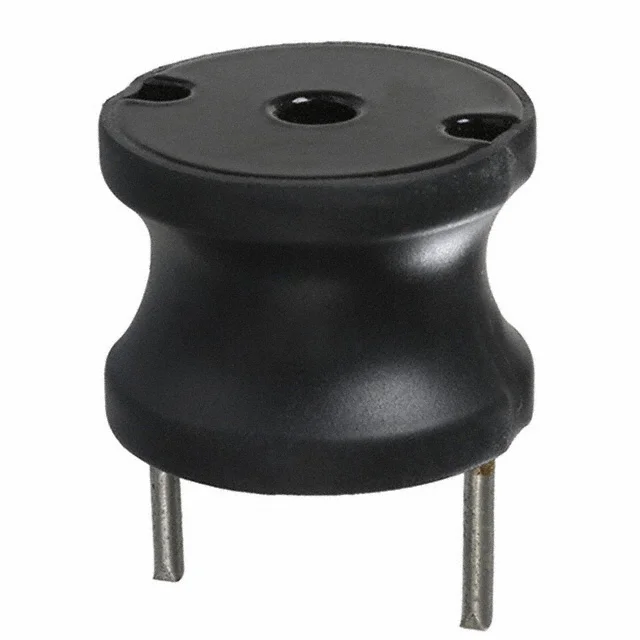

FIXED IND 5.6UH 21A 3 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 1130-5R6M.
1130-5R6M has an inductance value of 5.6 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
1130-5R6M is rated for 21 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
1130-5R6M lists a DC resistance of 3mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
1130-5R6M uses a package or case of Radial, Vertical Cylinder. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 1130-5R6M to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 5.6 µH |
| Tolerance | ±20% |
| Current Rating | 21 A |
| DC Resistance (DCR) | 3mOhm Max |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 1.100" Dia (27.94mm) |
| Case / Size | Radial, Vertical Cylinder |
| Package / Case | Radial, Vertical Cylinder |
| Supplier | Bourns Inc. |
| Description | FIXED IND 5.6UH 21A 3 MOHM TH |
| Series | 1130 |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Through Hole |
| Height - Seated (Max) | 0.840" (21.34mm) |
