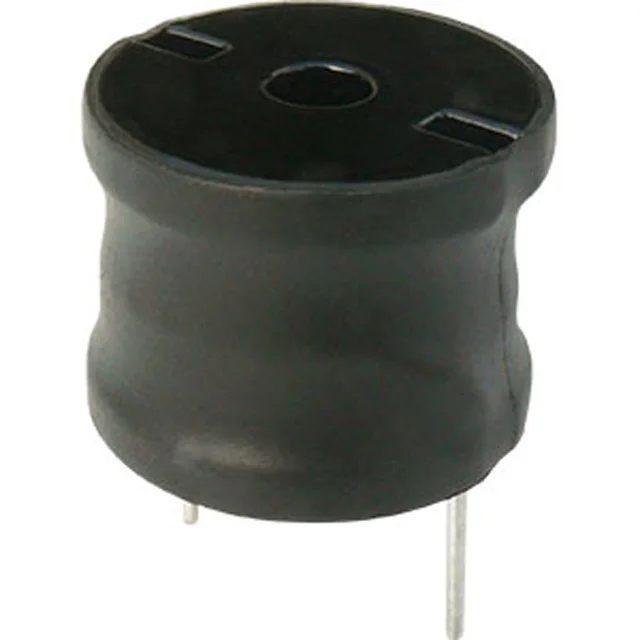

Description
FIXED IND 47UH 12.3A 18 MOHM TH
Specifications
Inductance
47 µH
Current Rating
12.3 A
DC Resistance (DCR)
18mOhm Max
Dimensions
1.500" Dia (38.10mm)
Product Attributes
Manufacturer Verified
Last verified: 6/11/2026| Inductance | 47 µH |
| Tolerance | ±10% |
| Current Rating | 12.3 A |
| DC Resistance (DCR) | 18mOhm Max |
| saturationCurrent | 30.6A |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 1.500" Dia (38.10mm) |
| Case / Size | Radial, Vertical Cylinder |
| Supplier | Bourns Inc. |
| Description | FIXED IND 47UH 12.3A 18 MOHM TH |
| Series | 1140 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Through Hole |
| supplierDevicePackage | Radial |
| heightMax | 1.030" (26.16mm) |
| features | - |
