Description

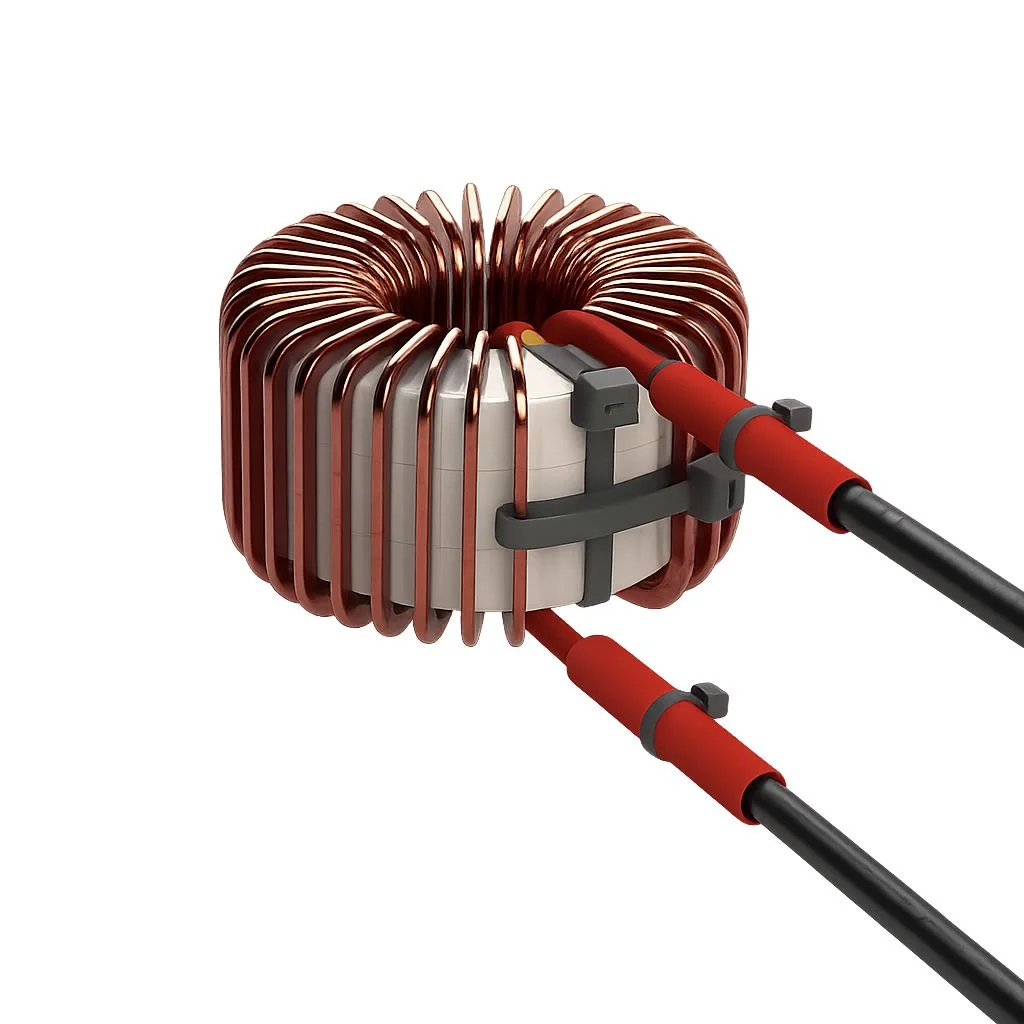

FIXED IND 75UH 80A 4 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 153220.
153220 has an inductance value of 75 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
153220 is rated for 80 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
153220 lists a DC resistance of 4mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
153220 uses a package or case of Vertical, No Base, 2 PC Pin. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 153220 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 75 µH |
| Tolerance | ±20% |
| Current Rating | 80 A |
| DC Resistance (DCR) | 4mOhm Max |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 4.134" Dia (105.00mm) |
| Case / Size | Vertical, No Base, 2 PC Pin |
| Package / Case | Vertical, No Base, 2 PC Pin |
| Supplier | Bourns Inc. |
| Description | FIXED IND 75UH 80A 4 MOHM TH |
| Series | 15322x |
| Product Status | Active |
| Type / Construction | Toroidal |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 10 kHz |
| Mounting Type | Through Hole |
| Height - Seated (Max) | 2.598" (66.00mm) |
