Description

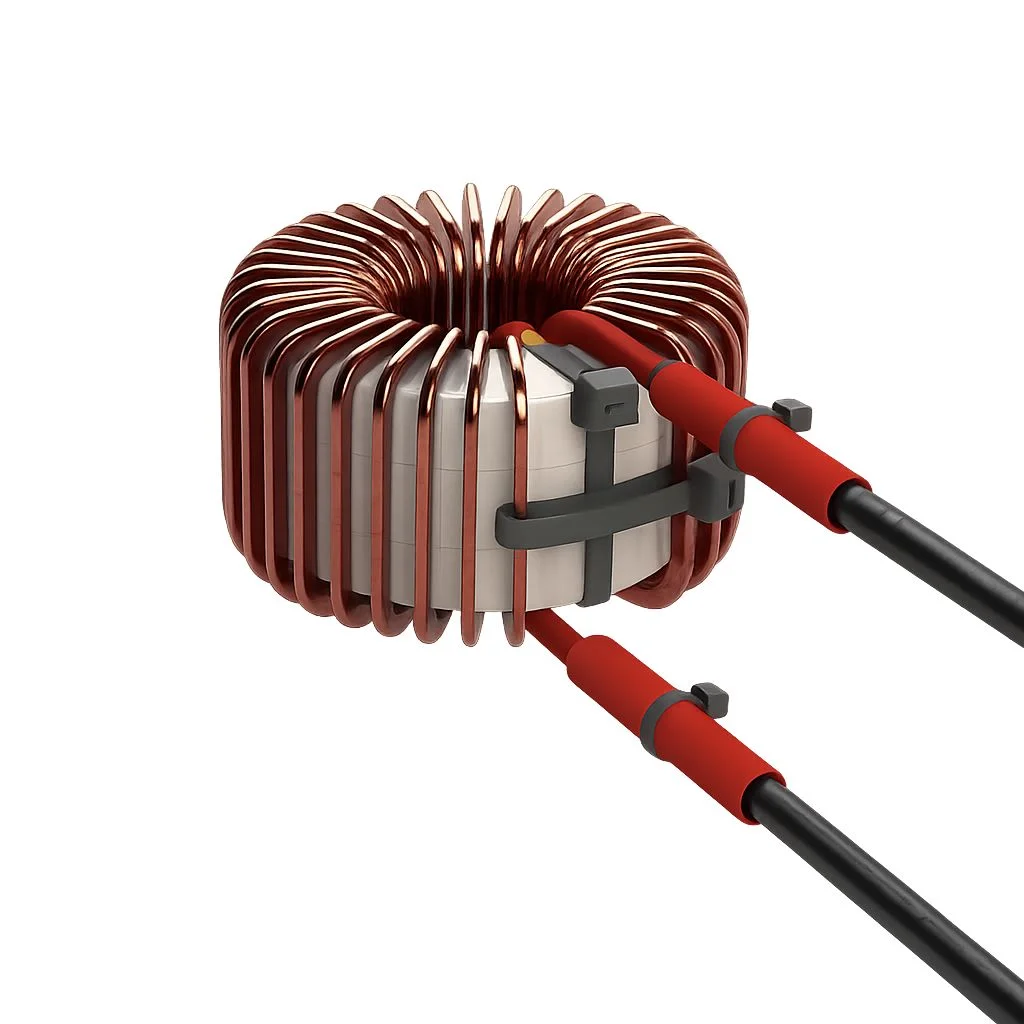

FIXED IND 165UH 65A 6 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 153222.
153222 has an inductance value of 165 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
153222 is rated for 65 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
153222 lists a DC resistance of 6mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
153222 uses a package or case of Vertical, No Base, 2 PC Pin. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 153222 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 165 µH |
| Tolerance | ±20% |
| Current Rating | 65 A |
| DC Resistance (DCR) | 6mOhm Max |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 4.134" Dia (105.00mm) |
| Case / Size | Vertical, No Base, 2 PC Pin |
| Package / Case | Vertical, No Base, 2 PC Pin |
| Supplier | Bourns Inc. |
| Description | FIXED IND 165UH 65A 6 MOHM TH |
| Series | 15322x |
| Product Status | Active |
| Type / Construction | Toroidal |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 10 kHz |
| Mounting Type | Through Hole |
| Height - Seated (Max) | 2.598" (66.00mm) |
