Description

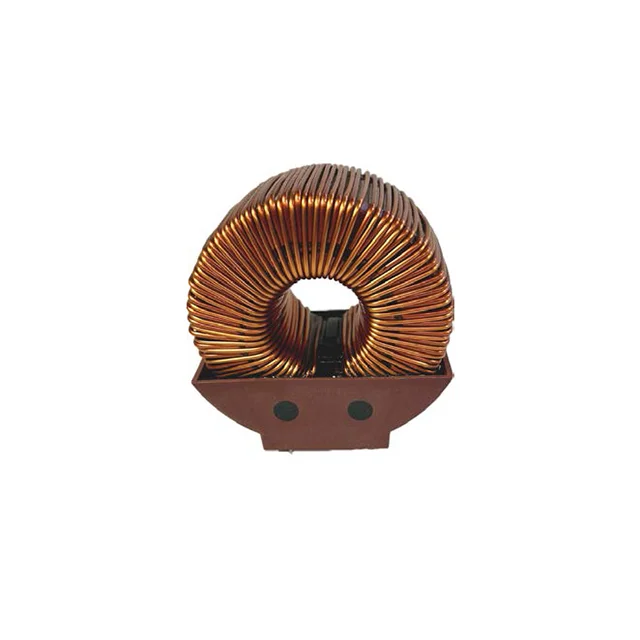

FIXED IND 1MH 13A 34 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 153230.
153230 has an inductance value of 1 mH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
153230 is rated for 13 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
153230 lists a DC resistance of 34mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
153230 uses a package or case of Vertical, 8 PC Pin. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 153230 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 1 mH |
| Tolerance | ±20% |
| Current Rating | 13 A |
| DC Resistance (DCR) | 34mOhm |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 3.386" L x 1.969" W (86.00mm x 50.00mm) |
| Case / Size | Vertical, 8 PC Pin |
| Package / Case | Vertical, 8 PC Pin |
| Supplier | Bourns Inc. |
| Description | FIXED IND 1MH 13A 34 MOHM TH |
| Series | 15323x |
| Product Status | Active |
| Type / Construction | Toroidal |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 10 kHz |
| Mounting Type | Through Hole |
| Supplier Device Package | Vertical, 8 PC Pin |
| Height - Seated (Max) | 3.622" (92.00mm) |
