Description

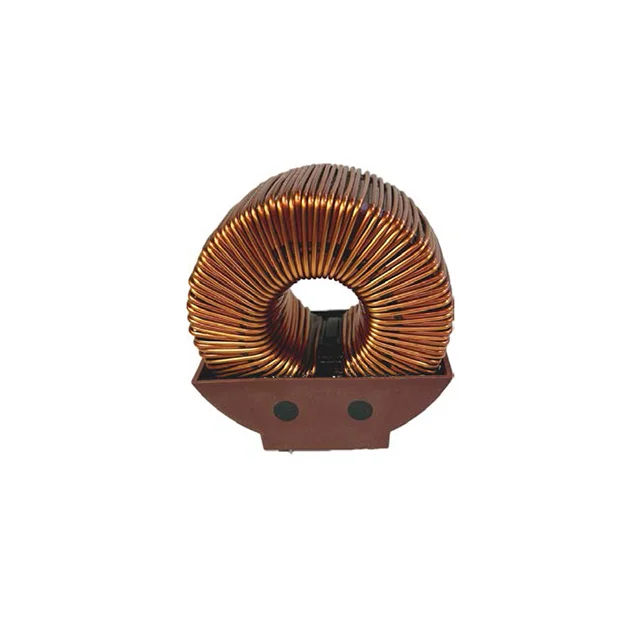

FIXED IND 300UH 20A 12 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 153231.
153231 has an inductance value of 300 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
153231 is rated for 20 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
153231 lists a DC resistance of 12mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
153231 uses a package or case of Vertical, 8 PC Pin. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 153231 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 300 µH |
| Tolerance | ±20% |
| Current Rating | 20 A |
| DC Resistance (DCR) | 12mOhm |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 3.425" L x 1.575" W (87.00mm x 40.00mm) |
| Case / Size | Vertical, 8 PC Pin |
| Package / Case | Vertical, 8 PC Pin |
| Supplier | Bourns Inc. |
| Description | FIXED IND 300UH 20A 12 MOHM TH |
| Series | 15323x |
| Product Status | Active |
| Type / Construction | Toroidal |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 10 kHz |
| Mounting Type | Through Hole |
| Supplier Device Package | Vertical, 8 PC Pin |
| Height - Seated (Max) | 3.622" (92.00mm) |
