Description

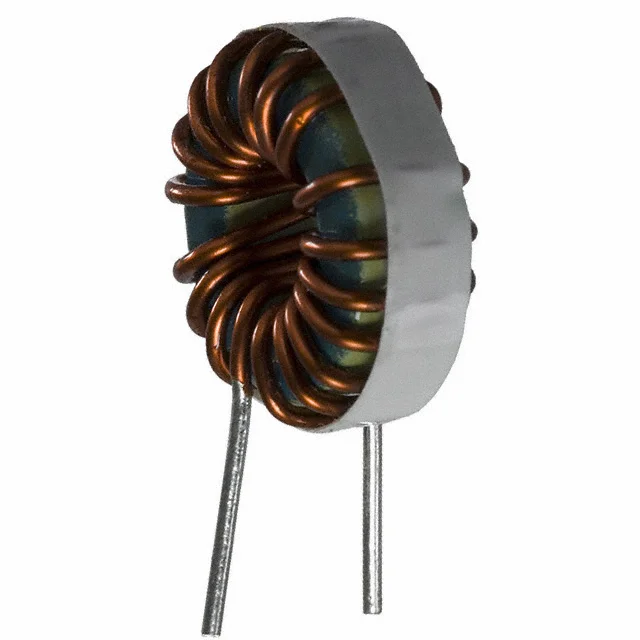

FIXED IND 1MH 1.6A 430 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 2100HT-102-V-RC.
2100HT-102-V-RC has an inductance value of 1 mH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
2100HT-102-V-RC is rated for 1.6 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
2100HT-102-V-RC lists a DC resistance of 430mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
2100HT-102-V-RC uses a package or case of Radial, Vertical (Open). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 2100HT-102-V-RC to manufacturer, series, and broader datasheet collections.
Similar-specification candidates · Engineering review required
Screened against recorded construction, core, mounting, dimensions and current/DCR. Land pattern, test conditions and circuit compatibility still require validation.
Missing evidence or no candidates passed screening. A replacement cannot be determined; request a review of the original datasheets.
Product Attributes
| Inductance | 1 mH |
| Tolerance | ±15% |
| Current Rating | 1.6 A |
| DC Resistance (DCR) | 430mOhm Max |
| Operating Temperature | -55°C ~ 200°C |
| Dimensions | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) |
| Case / Size | Radial, Vertical (Open) |
| Package / Case | Radial, Vertical (Open) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 1MH 1.6A 430 MOHM TH |
| Series | 2100HT |
| Product Status | Active |
| Type / Construction | Toroidal |
| Shielding | Shielded |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Through Hole |
