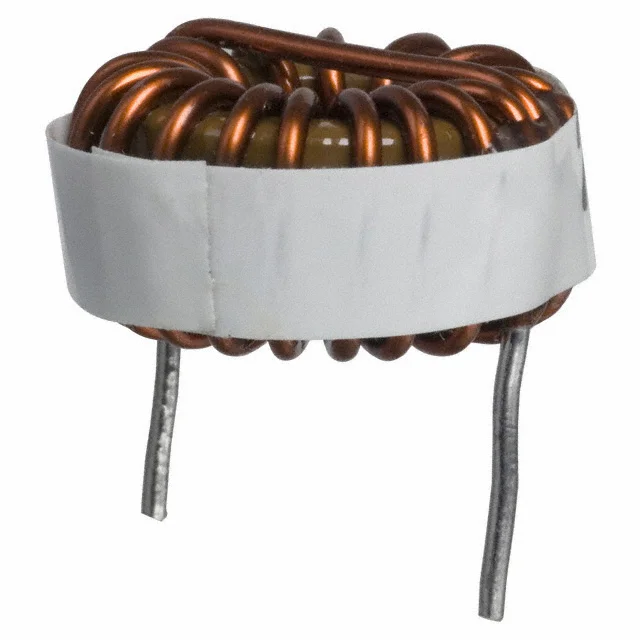

FIXED IND 1.5UH 19.8A 3 MOHM TH
| Inductance | 1.5 µH |
| Tolerance | ±15% |
| Current Rating | 19.8 A |
| DC Resistance (DCR) | 3mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -55°C ~ 200°C |
| Dimensions | 0.860" Dia (21.84mm) |
| Case / Size | Radial, Horizontal (Open) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 1.5UH 19.8A 3 MOHM TH |
| Series | 2100HT |
| productStatus | Active |
| typeConstruction | Toroidal |
| coreMaterial | - |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Through Hole |
| supplierDevicePackage | - |
| heightMax | 0.450" (11.43mm) |
| features | - |
