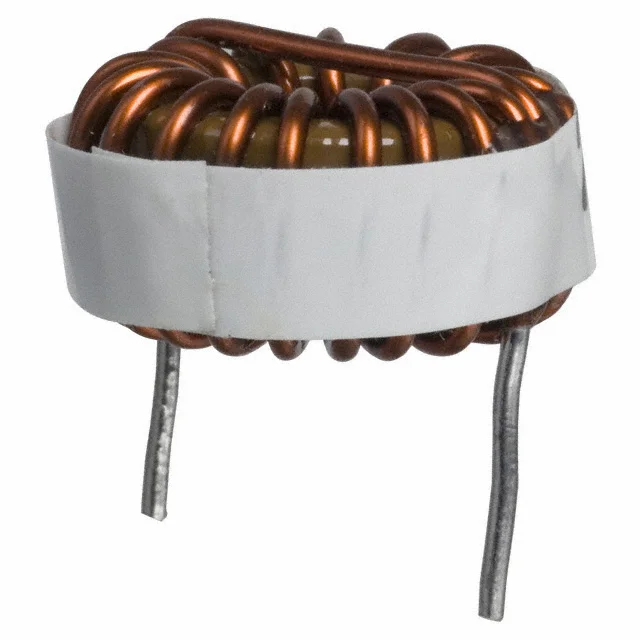

FIXED IND 1MH 1.5A 284 MOHM TH
| Inductance | 1 mH |
| Tolerance | ±15% |
| Current Rating | 1.5 A |
| DC Resistance (DCR) | 284mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.860" Dia (21.84mm) |
| Case / Size | Radial, Horizontal (Open) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 1MH 1.5A 284 MOHM TH |
| Series | 2100LL |
| productStatus | Active |
| typeConstruction | Toroidal |
| coreMaterial | Sendust |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Through Hole |
| supplierDevicePackage | - |
| heightMax | 0.450" (11.43mm) |
| features | - |
