Description

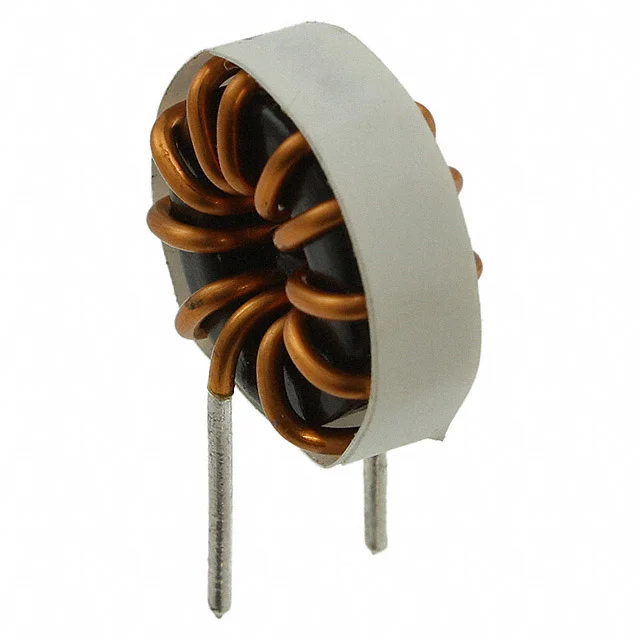

FIXED IND 1MH 1.5A 284 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 2100LL-102-V-RC.
2100LL-102-V-RC has an inductance value of 1 mH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
2100LL-102-V-RC is rated for 1.5 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
2100LL-102-V-RC lists a DC resistance of 284mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
2100LL-102-V-RC uses a package or case of Radial, Vertical (Open). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 2100LL-102-V-RC to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 1 mH |
| Tolerance | ±15% |
| Current Rating | 1.5 A |
| DC Resistance (DCR) | 284mOhm Max |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) |
| Case / Size | Radial, Vertical (Open) |
| Package / Case | Radial, Vertical (Open) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 1MH 1.5A 284 MOHM TH |
| Series | 2100LL |
| Product Status | Active |
| Type / Construction | Toroidal |
| Core Material | Sendust |
| Shielding | Shielded |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Through Hole |
