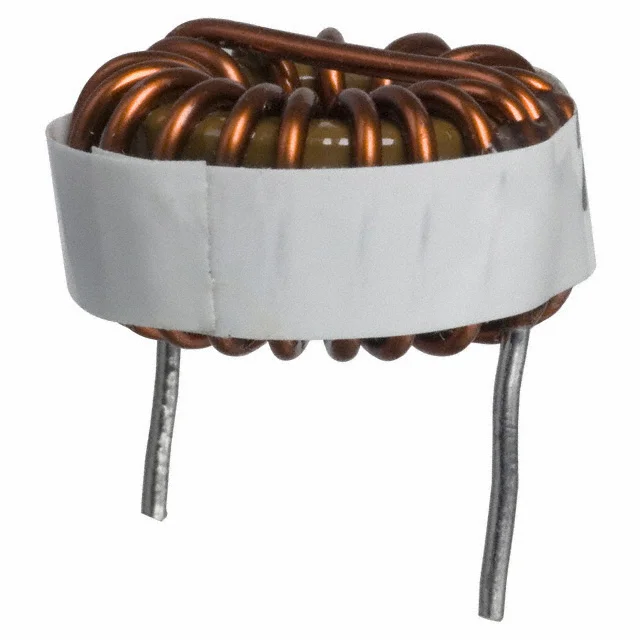

Description
FIXED IND 2.2UH 16.5A 3 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 2100LL-2R2-H-RC.
2100LL-2R2-H-RC has an inductance value of 2.2 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
2100LL-2R2-H-RC is rated for 16.5 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
2100LL-2R2-H-RC lists a DC resistance of 3mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
2100LL-2R2-H-RC uses a package or case of Radial, Horizontal (Open). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 2100LL-2R2-H-RC to manufacturer, series, and broader datasheet collections.
Similar-specification candidates · Engineering review required
Screened against recorded construction, core, mounting, dimensions and current/DCR. Land pattern, test conditions and circuit compatibility still require validation.
Missing evidence or no candidates passed screening. A replacement cannot be determined; request a review of the original datasheets.
Product Attributes
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating | 16.5 A |
| DC Resistance (DCR) | 3mOhm Max |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.860" Dia (21.84mm) |
| Case / Size | Radial, Horizontal (Open) |
| Package / Case | Radial, Horizontal (Open) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 2.2UH 16.5A 3 MOHM TH |
| Series | 2100LL |
| Product Status | Active |
| Type / Construction | Toroidal |
| Core Material | Sendust |
| Shielding | Shielded |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Through Hole |
| Height - Seated (Max) | 0.450" (11.43mm) |
