Description

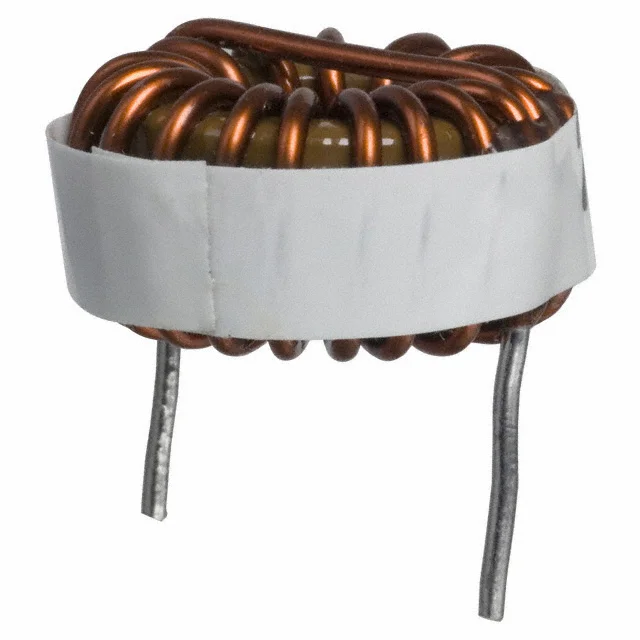

FIXED IND 820UH 1.4A 370 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 2123-H.
2123-H has an inductance value of 820 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
2123-H is rated for 1.4 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
2123-H lists a DC resistance of 370mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
2123-H uses a package or case of Radial, Horizontal (Open). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 2123-H to manufacturer, series, and broader datasheet collections.
Similar-specification candidates · Engineering review required
Screened against recorded construction, core, mounting, dimensions and current/DCR. Land pattern, test conditions and circuit compatibility still require validation.
Missing evidence or no candidates passed screening. A replacement cannot be determined; request a review of the original datasheets.
Product Attributes
| Inductance | 820 µH |
| Tolerance | ±15% |
| Current Rating | 1.4 A |
| DC Resistance (DCR) | 370mOhm Max |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.860" Dia (21.84mm) |
| Case / Size | Radial, Horizontal (Open) |
| Package / Case | Radial, Horizontal (Open) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 820UH 1.4A 370 MOHM TH |
| Series | 2100 |
| Product Status | Obsolete |
| Type / Construction | Toroidal |
| Shielding | Unshielded |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Through Hole |
| Height - Seated (Max) | 0.450" (11.43mm) |
