Description

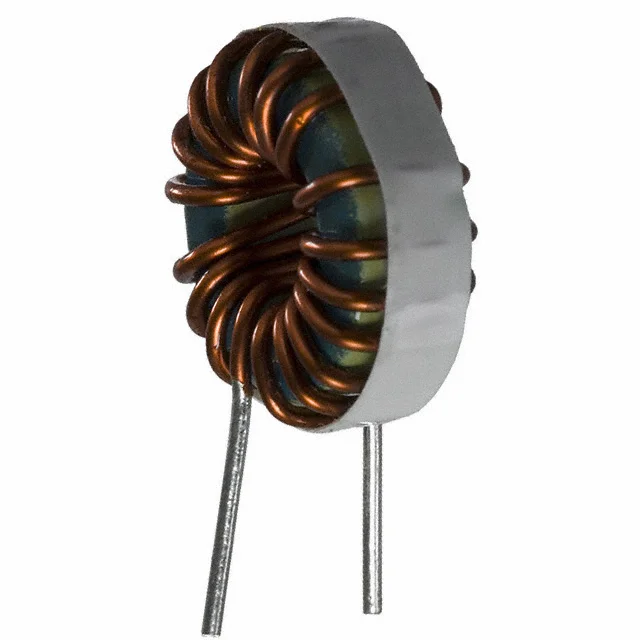

FIXED IND 1MH 1.3A 400 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 2124-V.
2124-V has an inductance value of 1 mH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
2124-V is rated for 1.3 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
2124-V lists a DC resistance of 400mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
2124-V uses a package or case of Radial, Vertical (Open). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 2124-V to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 1 mH |
| Tolerance | ±15% |
| Current Rating | 1.3 A |
| DC Resistance (DCR) | 400mOhm Max |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) |
| Case / Size | Radial, Vertical (Open) |
| Package / Case | Radial, Vertical (Open) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 1MH 1.3A 400 MOHM TH |
| Series | 2100 |
| Product Status | Obsolete |
| Type / Construction | Toroidal |
| Shielding | Unshielded |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Through Hole |
