Description

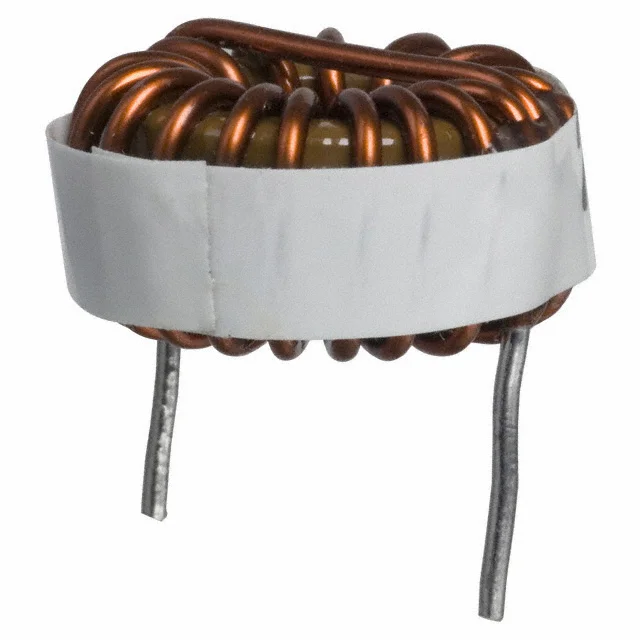

FIXED IND 100UH 5.3A 61 MOHM TH
Specifications
Inductance
100 µH
Current Rating
5.3 A
DC Resistance (DCR)
61mOhm Max
Dimensions
0.950" Dia (24.13mm)
Product Attributes
Manufacturer Verified
Last verified: 5/6/2026| Inductance | 100 µH |
| Tolerance | ±15% |
| Current Rating | 5.3 A |
| DC Resistance (DCR) | 61mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -55°C ~ 200°C |
| Dimensions | 0.950" Dia (24.13mm) |
| Case / Size | Radial, Horizontal (Open) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 100UH 5.3A 61 MOHM TH |
| Series | 2200HT |
| productStatus | Active |
| typeConstruction | Toroidal |
| coreMaterial | Iron Powder |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Through Hole |
| supplierDevicePackage | - |
| heightMax | 0.550" (13.97mm) |
| features | - |
