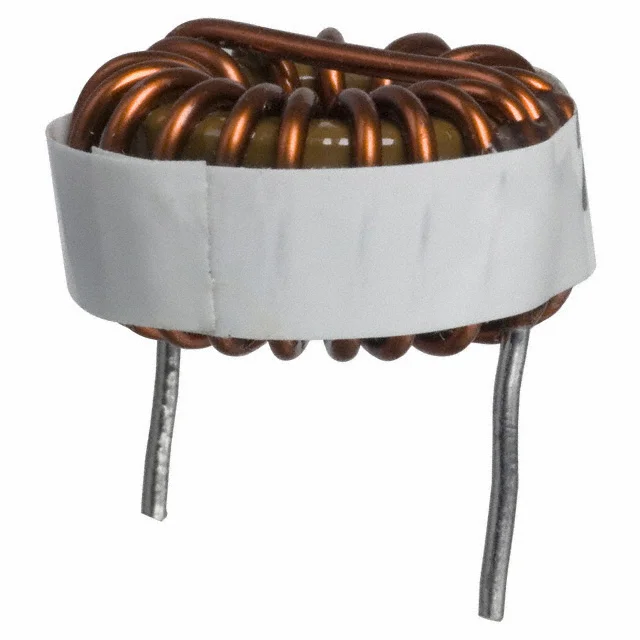

FIXED IND 3.9UH 17.8A 6 MOHM TH
| Inductance | 3.9 µH |
| Tolerance | ±15% |
| Current Rating | 17.8 A |
| DC Resistance (DCR) | 6mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -55°C ~ 200°C |
| Dimensions | 0.950" Dia (24.13mm) |
| Case / Size | Radial, Horizontal (Open) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 3.9UH 17.8A 6 MOHM TH |
| Series | 2200HT |
| productStatus | Active |
| typeConstruction | Toroidal |
| coreMaterial | Iron Powder |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Through Hole |
| supplierDevicePackage | - |
| heightMax | 0.550" (13.97mm) |
| features | - |
