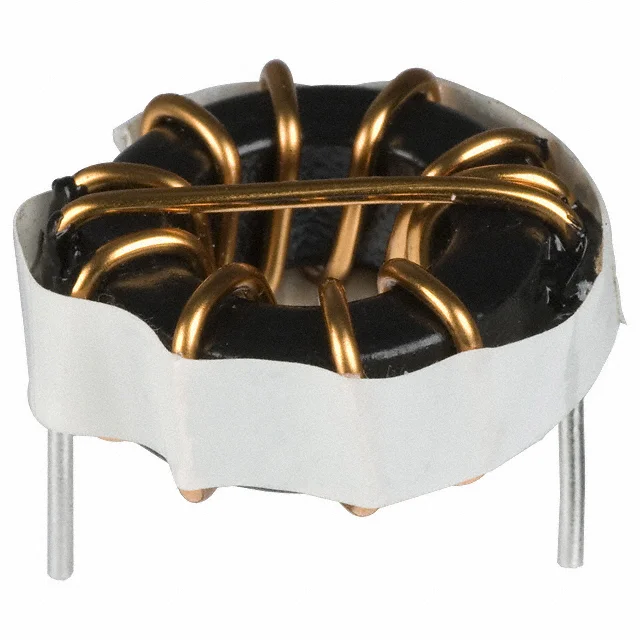

FIXED IND 27UH 11.8A 9 MOHM TH
| Inductance | 27 µH |
| Tolerance | ±15% |
| Current Rating | 11.8 A |
| DC Resistance (DCR) | 9mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 1.100" Dia x 0.550" W (27.94mm x 13.97mm) |
| Case / Size | Radial, Vertical (Open) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 27UH 11.8A 9 MOHM TH |
| Series | 2200LL |
| productStatus | Active |
| typeConstruction | Toroidal |
| coreMaterial | Sendust |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Through Hole |
| supplierDevicePackage | - |
| heightMax | - |
| features | - |
