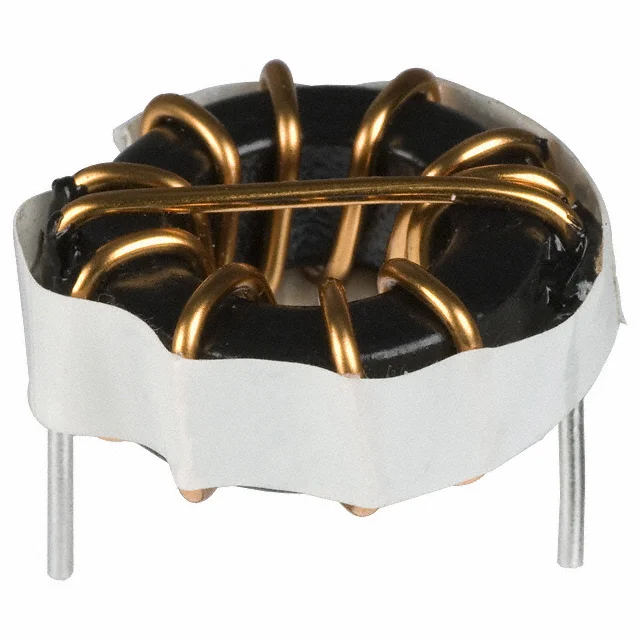

Description
FIXED IND 680UH 2.7A 176 MOHM TH
Specifications
Inductance
680 µH
Current Rating
2.7 A
DC Resistance (DCR)
176mOhm Max
Dimensions
1.100" Dia x 0.550" W (27.94mm x 13.97mm)
Product Attributes
Manufacturer Verified
Last verified: 6/11/2026| Inductance | 680 µH |
| Tolerance | ±15% |
| Current Rating | 2.7 A |
| DC Resistance (DCR) | 176mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 1.100" Dia x 0.550" W (27.94mm x 13.97mm) |
| Case / Size | Radial, Vertical (Open) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 680UH 2.7A 176 MOHM TH |
| Series | 2200LL |
| productStatus | Active |
| typeConstruction | Toroidal |
| coreMaterial | Sendust |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Through Hole |
| supplierDevicePackage | - |
| heightMax | - |
| features | - |
