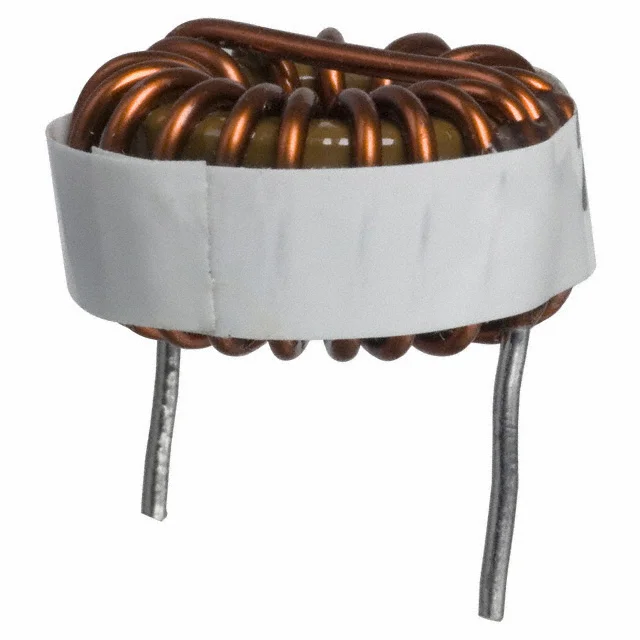

Description
FIXED IND 1MH 1.9A 280 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 2224-H-RC.
2224-H-RC has an inductance value of 1 mH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
2224-H-RC is rated for 1.9 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
2224-H-RC lists a DC resistance of 280mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
2224-H-RC uses a package or case of Radial, Horizontal (Open). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 2224-H-RC to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 1 mH |
| Tolerance | ±15% |
| Current Rating | 1.9 A |
| DC Resistance (DCR) | 280mOhm Max |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.950" Dia (24.13mm) |
| Case / Size | Radial, Horizontal (Open) |
| Package / Case | Radial, Horizontal (Open) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 1MH 1.9A 280 MOHM TH |
| Series | 2200 |
| Product Status | Active |
| Type / Construction | Toroidal |
| Core Material | Iron Powder |
| Shielding | Shielded |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Through Hole |
| Height - Seated (Max) | 0.550" (13.97mm) |
