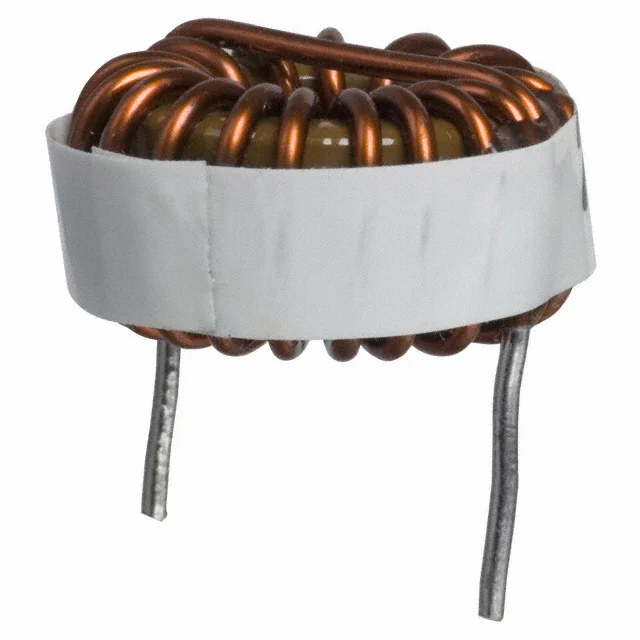

FIXED IND 220UH 6.8A 61 MOHM TH
| Inductance | 220 µH |
| Tolerance | ±15% |
| Current Rating | 6.8 A |
| DC Resistance (DCR) | 61mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -55°C ~ 200°C |
| Dimensions | 1.280" Dia (32.51mm) |
| Case / Size | Radial, Horizontal (Open) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 220UH 6.8A 61 MOHM TH |
| Series | 2300HT |
| productStatus | Obsolete |
| typeConstruction | Toroidal |
| coreMaterial | Iron Powder |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Through Hole |
| supplierDevicePackage | - |
| heightMax | 0.650" (16.51mm) |
| features | - |
