Description

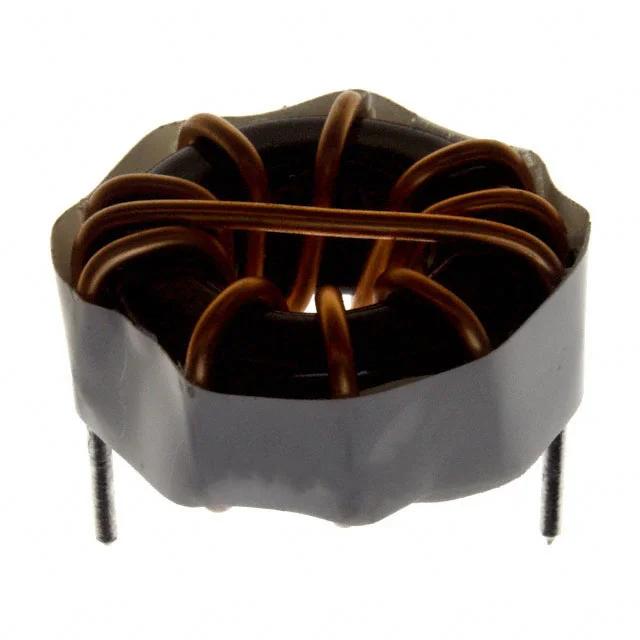

FIXED IND 47UH 11.8A 12 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 2300LL-470-H-RC.
2300LL-470-H-RC has an inductance value of 47 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
2300LL-470-H-RC is rated for 11.8 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
2300LL-470-H-RC lists a DC resistance of 12mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
2300LL-470-H-RC uses a package or case of Radial, Horizontal (Open). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 2300LL-470-H-RC to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 47 µH |
| Tolerance | ±15% |
| Current Rating | 11.8 A |
| DC Resistance (DCR) | 12mOhm Max |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 1.280" Dia (32.51mm) |
| Case / Size | Radial, Horizontal (Open) |
| Package / Case | Radial, Horizontal (Open) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 47UH 11.8A 12 MOHM TH |
| Series | 2300LL |
| Product Status | Active |
| Type / Construction | Toroidal |
| Core Material | Sendust |
| Shielding | Shielded |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Through Hole |
| Height - Seated (Max) | 0.650" (16.51mm) |
