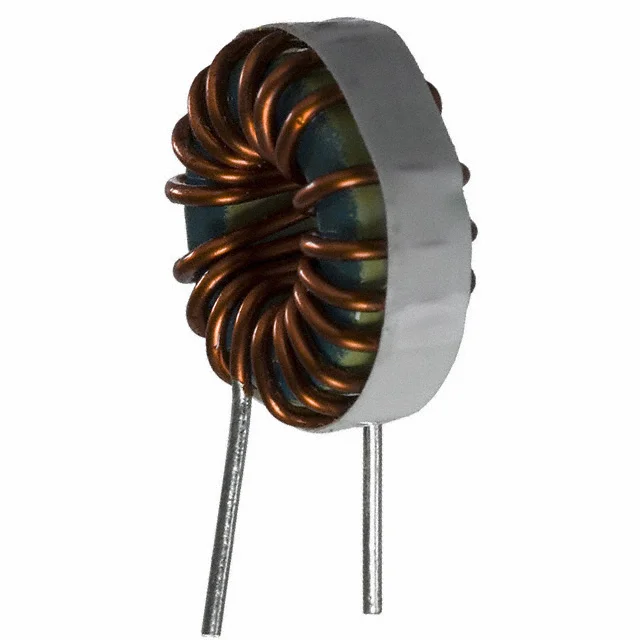

Description
FIXED IND 390UH 5A 72 MOHM TH
Specifications
Inductance
390 µH
Current Rating
5 A
DC Resistance (DCR)
72mOhm Max
Dimensions
1.280" Dia x 0.650" W (32.51mm x 16.51mm)
Product Attributes
Manufacturer Verified
Last verified: 5/6/2026| Inductance | 390 µH |
| Tolerance | ±15% |
| Current Rating | 5 A |
| DC Resistance (DCR) | 72mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) |
| Case / Size | Radial, Vertical (Open) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 390UH 5A 72 MOHM TH |
| Series | 2300 |
| productStatus | Active |
| typeConstruction | Toroidal |
| coreMaterial | Iron Powder |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Through Hole |
| supplierDevicePackage | - |
| heightMax | - |
| features | - |
