Description

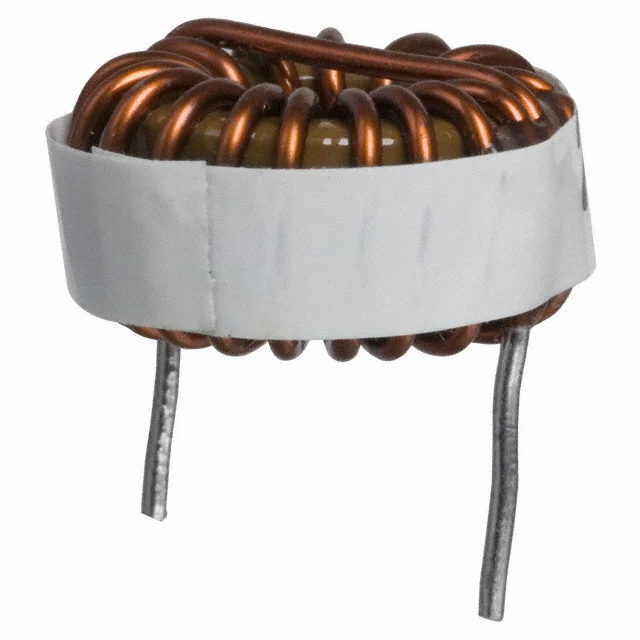

FIXED IND 1MH 2.4A 300 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 2324-H.
2324-H has an inductance value of 1 mH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
2324-H is rated for 2.4 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
2324-H lists a DC resistance of 300mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
2324-H uses a package or case of Radial, Horizontal (Open). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 2324-H to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 1 mH |
| Tolerance | ±15% |
| Current Rating | 2.4 A |
| DC Resistance (DCR) | 300mOhm Max |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 1.280" Dia (32.51mm) |
| Case / Size | Radial, Horizontal (Open) |
| Package / Case | Radial, Horizontal (Open) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 1MH 2.4A 300 MOHM TH |
| Series | 2300 |
| Product Status | Obsolete |
| Type / Construction | Toroidal |
| Core Material | Iron Powder |
| Shielding | Unshielded |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Through Hole |
| Height - Seated (Max) | 0.650" (16.51mm) |
