Description

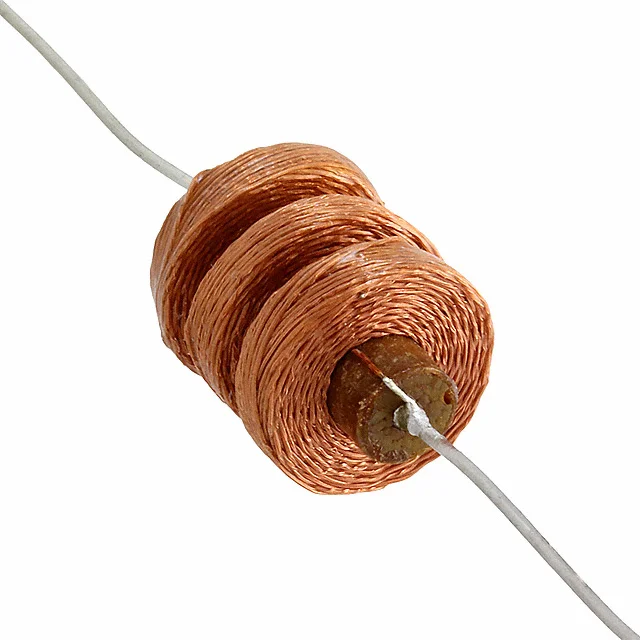

FIXED IND 1MH 160MA 19 OHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 4652-RC.
4652-RC has an inductance value of 1 mH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
4652-RC is rated for 160 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
4652-RC lists a DC resistance of 19Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
4652-RC uses a package or case of Axial. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 4652-RC to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 1 mH |
| Tolerance | ±5% |
| Current Rating | 160 mA |
| DC Resistance (DCR) | 19Ohm Max |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.560" Dia x 0.875" L (14.22mm x 22.22mm) |
| Case / Size | Axial |
| Package / Case | Axial |
| Supplier | Bourns Inc. |
| Description | FIXED IND 1MH 160MA 19 OHM TH |
| Series | 4600 |
| Product Status | Obsolete |
| Type / Construction | Wirewound |
| Core Material | Phenolic |
| Shielding | Unshielded |
| Q @ Frequency | 59 @ 252kHz |
| Self Resonant Frequency | 3.7MHz |
| Inductance Test Frequency | 252 kHz |
| Mounting Type | Through Hole |
