Description

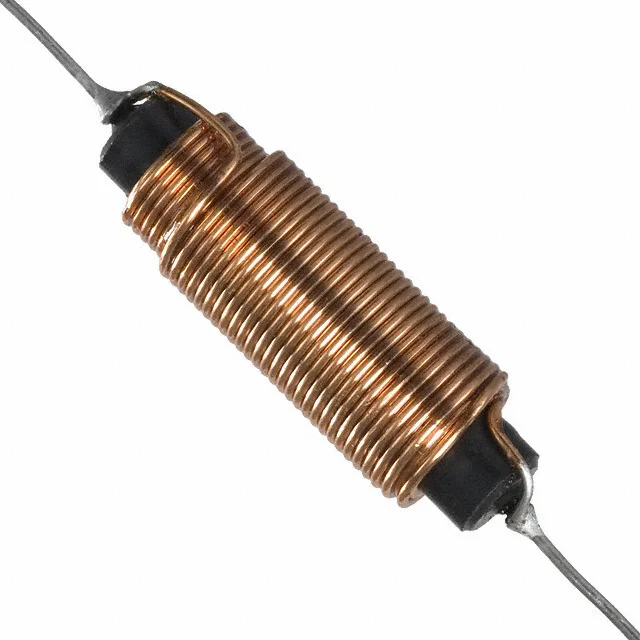

FIXED IND 4.9UH 15A 16 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 5219.
5219 has an inductance value of 4.9 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
5219 is rated for 15 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
5219 lists a DC resistance of 16mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
5219 uses a package or case of Axial. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 5219 to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 4.9 µH |
| Tolerance | ±20% |
| Current Rating | 15 A |
| DC Resistance (DCR) | 16mOhm Max |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.600" Dia x 1.250" L (15.24mm x 31.75mm) |
| Case / Size | Axial |
| Package / Case | Axial |
| Supplier | Bourns Inc. |
| Description | FIXED IND 4.9UH 15A 16 MOHM TH |
| Series | 5200 |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Iron |
| Shielding | Unshielded |
| Self Resonant Frequency | 95MHz |
| Inductance Test Frequency | 7.96 MHz |
| Mounting Type | Through Hole |
