Description

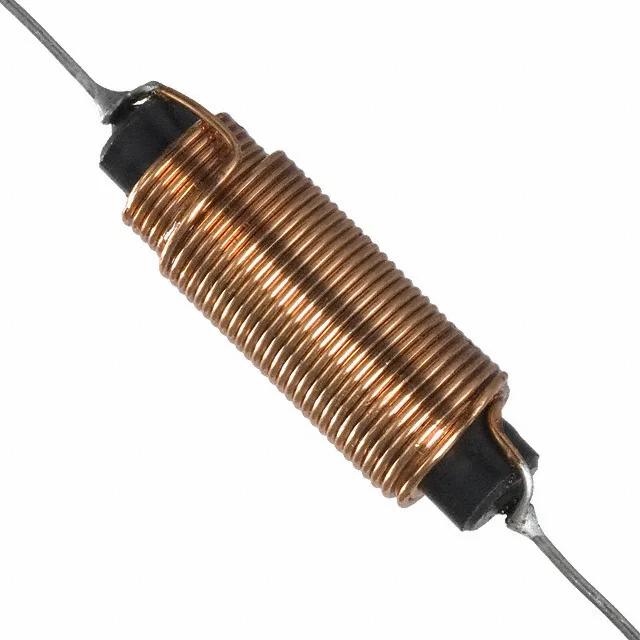

FIXED IND 8.8UH 10A 21 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 5220.
5220 has an inductance value of 8.8 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
5220 is rated for 10 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
5220 lists a DC resistance of 21mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
5220 uses a package or case of Axial. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 5220 to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 8.8 µH |
| Tolerance | ±20% |
| Current Rating | 10 A |
| DC Resistance (DCR) | 21mOhm Max |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.560" Dia x 1.250" L (14.22mm x 31.75mm) |
| Case / Size | Axial |
| Package / Case | Axial |
| Supplier | Bourns Inc. |
| Description | FIXED IND 8.8UH 10A 21 MOHM TH |
| Series | 5200 |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Iron |
| Shielding | Unshielded |
| Self Resonant Frequency | 64MHz |
| Inductance Test Frequency | 7.96 MHz |
| Mounting Type | Through Hole |
