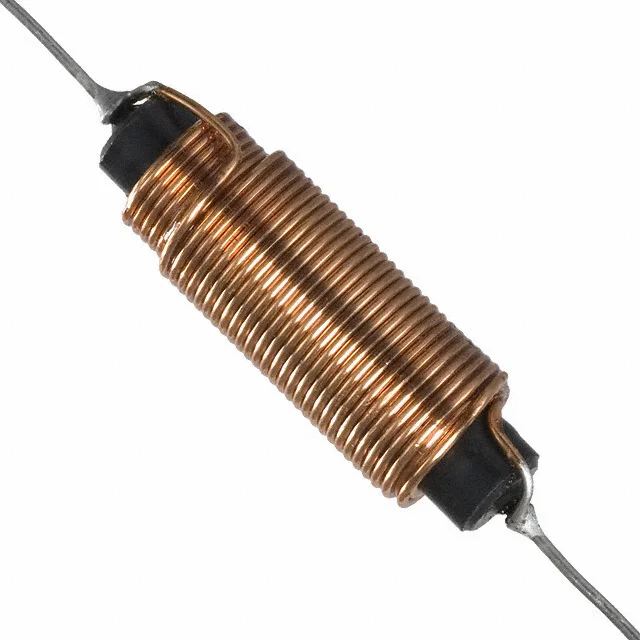

Description
FIXED IND 1MH 1A 550 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 5258.
5258 has an inductance value of 1 mH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
5258 is rated for 1 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
5258 lists a DC resistance of 550mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
5258 uses a package or case of Axial. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 5258 to manufacturer, series, and broader datasheet collections.
Similar-specification candidates · Engineering review required
Screened against recorded construction, core, mounting, dimensions and current/DCR. Land pattern, test conditions and circuit compatibility still require validation.
Missing evidence or no candidates passed screening. A replacement cannot be determined; request a review of the original datasheets.
Product Attributes
| Inductance | 1 mH |
| Tolerance | ±20% |
| Current Rating | 1 A |
| DC Resistance (DCR) | 550mOhm Max |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.500" Dia x 1.250" L (12.70mm x 31.75mm) |
| Case / Size | Axial |
| Package / Case | Axial |
| Supplier | Bourns Inc. |
| Description | FIXED IND 1MH 1A 550 MOHM TH |
| Series | ACS72981 |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Self Resonant Frequency | 650kHz |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Through Hole |
