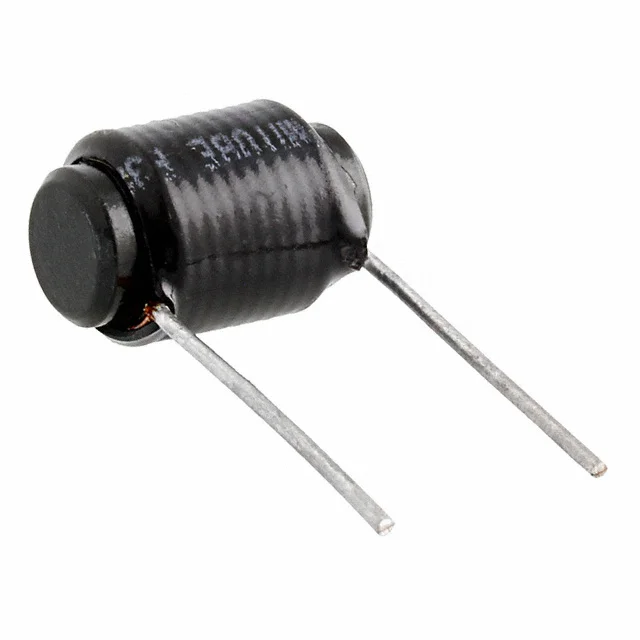

Description
FIXED IND 5UH 10A 13 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 5501.
5501 has an inductance value of 5 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
5501 is rated for 10 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
5501 lists a DC resistance of 13mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
5501 uses a package or case of Radial, Horizontal Cylinder. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 5501 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 5 µH |
| Tolerance | ±20% |
| Current Rating | 10 A |
| DC Resistance (DCR) | 13mOhm Max |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.630" Dia x 0.880" L (16.00mm x 22.35mm) |
| Case / Size | Radial, Horizontal Cylinder |
| Package / Case | Radial, Horizontal Cylinder |
| Supplier | Bourns Inc. |
| Description | FIXED IND 5UH 10A 13 MOHM TH |
| Series | 5500 |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Through Hole |
