Description

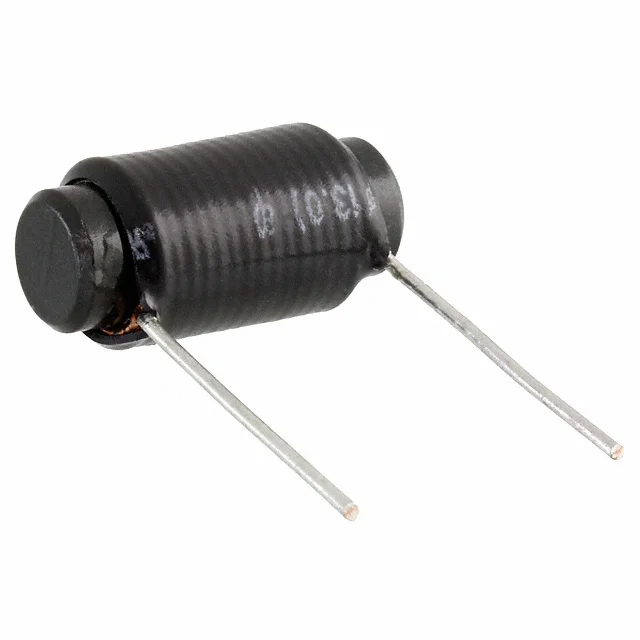

FIXED IND 10UH 9A 17 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 5502.
5502 has an inductance value of 10 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
5502 is rated for 9 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
5502 lists a DC resistance of 17mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
5502 uses a package or case of Radial, Horizontal Cylinder. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 5502 to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating | 9 A |
| DC Resistance (DCR) | 17mOhm Max |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.630" Dia x 1.120" L (16.00mm x 28.45mm) |
| Case / Size | Radial, Horizontal Cylinder |
| Package / Case | Radial, Horizontal Cylinder |
| Supplier | Bourns Inc. |
| Description | FIXED IND 10UH 9A 17 MOHM TH |
| Series | 5500 |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Through Hole |
