Description
FIXED IND 5UH 23A 4 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 5521-RC.
5521-RC has an inductance value of 5 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
5521-RC is rated for 23 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
5521-RC lists a DC resistance of 4mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.

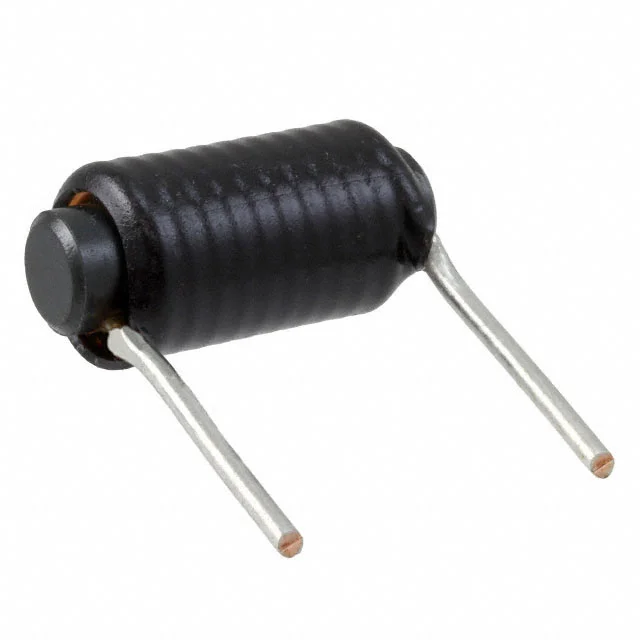

5521-RC uses a package or case of Radial, Horizontal Cylinder. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 5521-RC to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 5 µH |
| Tolerance | ±20% |
| Current Rating | 23 A |
| DC Resistance (DCR) | 4mOhm Max |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.720" Dia x 1.380" L (18.28mm x 35.05mm) |
| Case / Size | Radial, Horizontal Cylinder |
| Package / Case | Radial, Horizontal Cylinder |
| Supplier | Bourns Inc. |
| Description | FIXED IND 5UH 23A 4 MOHM TH |
| Series | 5500 |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Through Hole |
