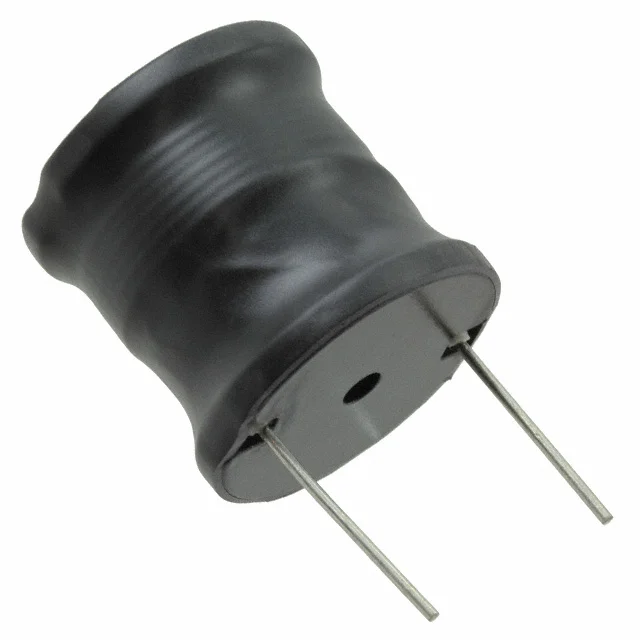

FIXED IND 50UH 6.6A 34 MOHM TH
| Inductance | 50 µH |
| Tolerance | ±10% |
| Current Rating | 6.6 A |
| DC Resistance (DCR) | 34mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.830" Dia (21.08mm) |
| Case / Size | Radial, Vertical Cylinder |
| Supplier | Bourns Inc. |
| Description | FIXED IND 50UH 6.6A 34 MOHM TH |
| Series | 5600 |
| productStatus | Obsolete |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Through Hole |
| supplierDevicePackage | - |
| heightMax | 0.910" (23.11mm) |
