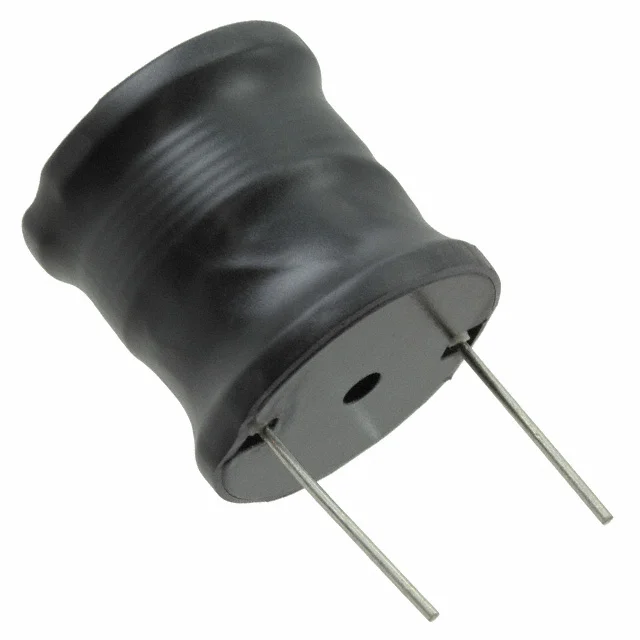

FIXED IND 100UH 7A 34 MOHM TH
| Inductance | 100 µH |
| Tolerance | ±10% |
| Current Rating | 7 A |
| DC Resistance (DCR) | 34mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 1.220" Dia (30.99mm) |
| Case / Size | Radial, Vertical Cylinder |
| Supplier | Bourns Inc. |
| Description | FIXED IND 100UH 7A 34 MOHM TH |
| Series | 5600 |
| productStatus | Obsolete |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Through Hole |
| supplierDevicePackage | - |
| heightMax | 1.110" (28.19mm) |
